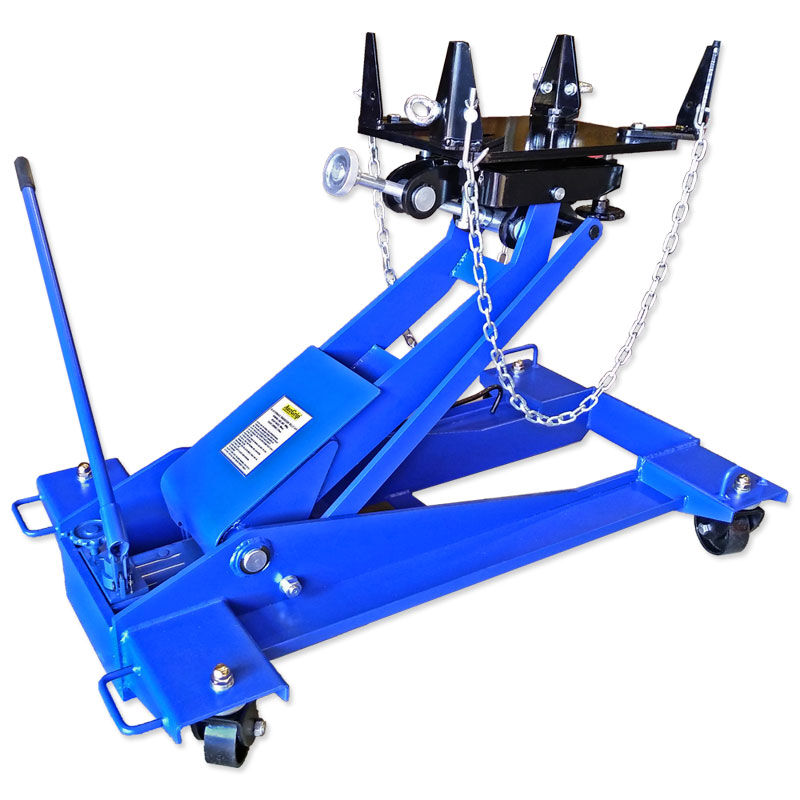

1800Kg Deluxe Transmission Trolley Jack

APPLICATION:
To aid in the safe removal and /or installation of large heavy duty agricultural, earthmoving, 4-wheel drive, truck and bus transmissions, transfer cases and even differentials. Unique adjustable, 2-way tilt cradle allows the best possible transmission alignment.
FEATURES:
Stable, heavy duty steel , chassis construction
Fully adjustable heavy-duty cradle with 2-way tilt for optimum transmission alignment
Adjustable safety restraint chains
User friendly 360 degree pivoting pumping handle form maximum multi-directional operation
Safety overload hydraulic by-pass system prevents hydraulic damage
Industrial grade, heavy duty, ball bearing, swivel castor wheels for ultimate manoeuvrability
Baked enamel finish for corrosion resistance
SAFETY WARNING
Use the hydraulic trolley jack on a hard, level surface (concrete is ideal) and ensure it is free to roll during the lifting and lowering process
Use this hydraulic trolley jack for lifting and lowering only
Observe all safety warning information and safe use instructions. Wear safety glasses when operating this equipment
SPECIFICATIONS:
Maximum Capacity: 1800Kg
Minimum Saddle Height: 210mm
Maximum Saddle Height: 900mm
Chassis Width: 652mm
Chassis Length: 1087mm
Minimum cradle dimensions: 385 x 470mm
Maximum cradle dimensions: 570 x 470mm
Cradle tilt angle: 30 degrees both fore and aft
Castor wheel size: 100mm
Weight: 140kg
Packaging size: 1220x730x350mm
