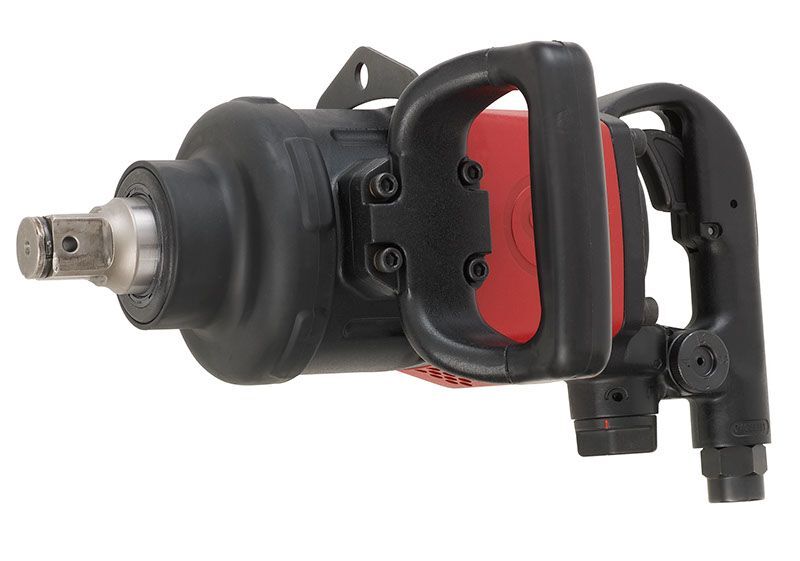

1Inch Dr Impact Wrech Cp 2600Nm
SKU:CP6920-D24
Benefits:
Strongest and most powerful 1" impact with an extended anvil
Superior operator productivity and control thanks to great ergonomics even at high levels of torque
Reliable and powerful oil bath Pinless Rocking Dog clutch
Unmatched durability with Reliable mechanism and durable housing
Ideal for Industrial Maintenance & Production applications
Features:
Super Industrial lightweight 1" impact wrench
Oil Bath Pinless rocking dog clutch
Durable Aluminum body and Rubber protective cover on clutch housing
D-type side handle with Rubber grip
Dual (hole and ring) type socket retainer
Removable hole plate for suspension
Metal trigger and reverse knob for longer durability
4-positions regulator and easy reverse
Specs:
Model CP6920-D24
Joint type: soft Joint type: soft
Joint type: hard Joint type: hard
Handle type D-Handle Inside Trigger
Square drive 1"
Working Torque Range (fwd) 500-2,100 Nm 370-1,550
Maximum Torque (reverse) 2600 Nm 1920 ft.lbs
Free speed 5000 rpm
Blows per minute 650
Net weight 10.3 kg 22.7 lb
Power/weight ratio 252.427184466019 Nm/kg 91 ft.lb/lb
Length 360 mm 14.2"
Side to center55 mm 2.2"
Actual air consumption 19 l/s 40.2 cfm
Min. hose size 13 mm 1/2"
Noise level 100 db(A)
Sound Power 111 db(A)
Vibration (ISO-8662-7) N/A m/s2
Vibration alpha (ISO-28927-2) 8.4 m/s2
Vibration K (ISO-28927-2) 2.8 m/s2
Socket retainer Dual
Clutch type Pinless Rocking Dog - Oil bath
Strongest and most powerful 1" impact with an extended anvil
Superior operator productivity and control thanks to great ergonomics even at high levels of torque
Reliable and powerful oil bath Pinless Rocking Dog clutch
Unmatched durability with Reliable mechanism and durable housing
Ideal for Industrial Maintenance & Production applications
Features:
Super Industrial lightweight 1" impact wrench
Oil Bath Pinless rocking dog clutch
Durable Aluminum body and Rubber protective cover on clutch housing
D-type side handle with Rubber grip
Dual (hole and ring) type socket retainer
Removable hole plate for suspension
Metal trigger and reverse knob for longer durability
4-positions regulator and easy reverse
Specs:
Model CP6920-D24
Joint type: soft Joint type: soft
Joint type: hard Joint type: hard
Handle type D-Handle Inside Trigger
Square drive 1"
Working Torque Range (fwd) 500-2,100 Nm 370-1,550
Maximum Torque (reverse) 2600 Nm 1920 ft.lbs
Free speed 5000 rpm
Blows per minute 650
Net weight 10.3 kg 22.7 lb
Power/weight ratio 252.427184466019 Nm/kg 91 ft.lb/lb
Length 360 mm 14.2"
Side to center55 mm 2.2"
Actual air consumption 19 l/s 40.2 cfm
Min. hose size 13 mm 1/2"
Noise level 100 db(A)
Sound Power 111 db(A)
Vibration (ISO-8662-7) N/A m/s2
Vibration alpha (ISO-28927-2) 8.4 m/s2
Vibration K (ISO-28927-2) 2.8 m/s2
Socket retainer Dual
Clutch type Pinless Rocking Dog - Oil bath
(CP6920-D24)
SKU | CP6920-D24 |
Barcode # | 9310754737703 |
Brand | Chicago Pneumatic |
Shipping Weight | 5.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.150m |
Shipping Length | 0.250m |
