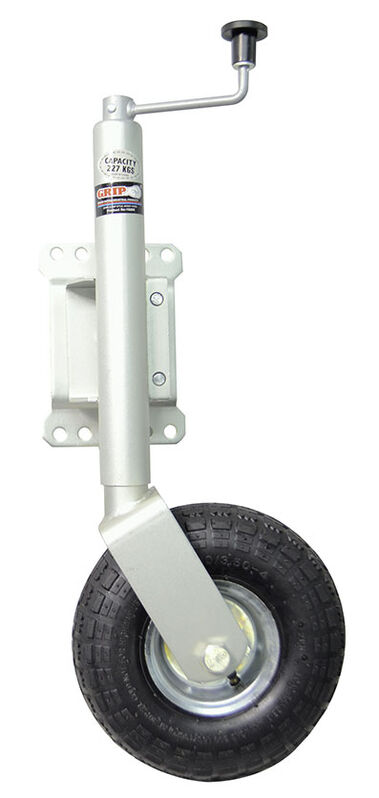

250Mm Jockey Wheel Pneumatic Swing Away

APPLICATION:
To allow easy manipulation and manuverability of trailers, caravans and horse floats. This product also helps to maintain easy hook up and disconnect by the raising and lowering of the drawbar coupling. Unique swing back design mounting clamp allows easy, out of the way, storage of the jockey wheel when towing.
FEATURES:
Heavy duty steel construction with quality thread height adjustment
Heavy duty winding handle with steel turning knob
Unique spring loaded release swing back style clamp. This unit can be bolted or welded to framework or drawbar coupling.
Pneumatic 250mm/10” diameter jockey wheel(approximate size)
Silver zinc plated finish for corrosion resistance
SPECIFICATIONS:
Load capacity: 227kg
Minimum height: 395mm
Maximum height: 680mm
Mounting plate size: 147(L)×200(W)mm
Distance between outer holes: 170 x 100mm
Distance between inner holes: 50 x 170mm
Packaged dimensions: 730(L)x265(W)x150(H)mm
Weight(nett): 7.5kg
