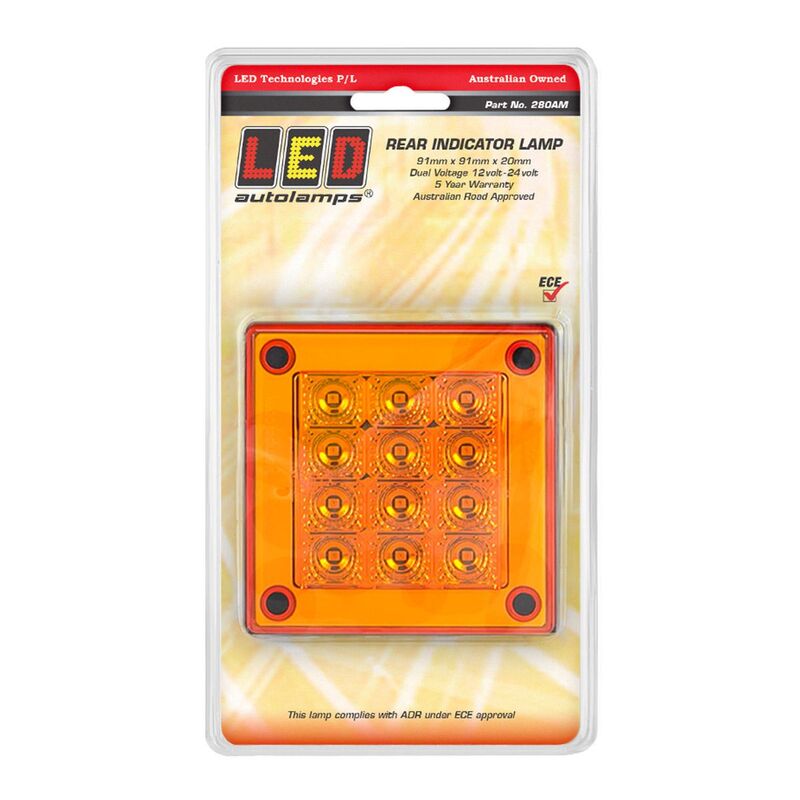

Mini Jumbo Led Indicator Lamp 12/24V Surface Mount 1.2M Lead

280 Series LED Rear Direction Indicator Lamp 12/24 Volt
Small sized Mini Jumbo Lamps- can be used as a replacement lamp in the 280 Series Combination Lamp Housing Assembly
Amber Illumination
12 x High Intensity White LED's
Faceted Reflector with Amber Hardened Acrylic pattern free Lens
Black ABS Plastic Housing with mounting screws caps included
Surface Mount- low mounting depth for easy installation
Pre-wired 100mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.18amps at 12 Volt and 0.10amps at 24 Volt Current Draw
ADR 6/00 2A Rear Indicator Lamp specifications approved
Refer to ADR 13/00 for mounting instructions
Blister Qty: 1
5 Year Warranty
Spare Parts:
280B3B Black Triple Bracket
Specifications:
Colour: Amber
Type: LED
Shape: Square
Voltage: 12/24V
Mount: Surface
Width (mm): 90
Height (mm): 90
Depth (mm): 28
