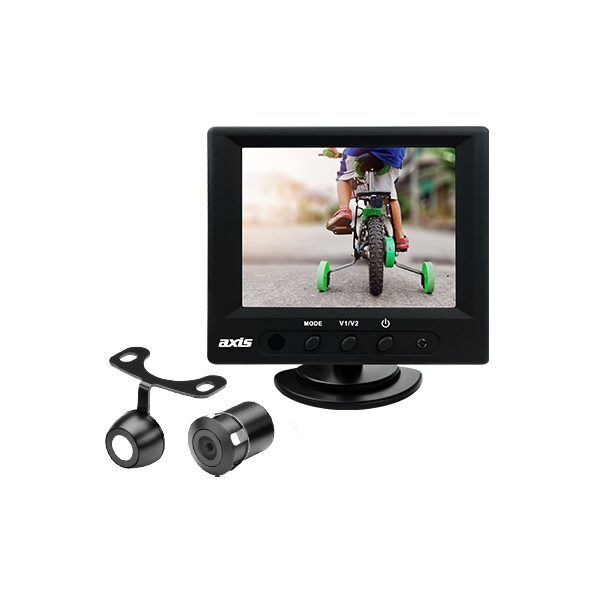

3.5 Lcd Rearview Camera Kit

The JS035K Series 2 is a convenient rearview safety system solution. Featuring 2 video inputs and a 1/4” CMOS colour camera with parking guidelines and dual mounting heads, you and your passengers will be able to enjoy a safe journey no matter the destination.
Specifications:
Monitor (JS035)
TFT Panel: New ‘A’ Grade LCD
LCD Size: 90mm (3.5-Inch) Diagonal
Resolution: 320 x 240 RGB
Video System: PAL/NTSC Auto Switching
Video Input: Video 1 (RCA), Video 2 (RCA) Auto Switching (Camera)
Adjustments: Display Effect (4 Brightness Settings)
Mounting: Adjustable Dash Stand
Dimensions: 90W x 80H x 25D mm
Power Input: 12/24V DC (Negative Ground)
Accessories: Sunshade / Adhesive Tape
Camera (C20 Series 2)
Imaging Clip: 1/4” Full Colour CMOS
Imaging Sensor: PC7070
Lens: Full Glass
Viewing Angle: 110 degree Wide Viewing Angle (Horizontal), 170° Wide Viewing Angle (Diagonal)
Video Format: PAL/NTSC (Switchable)
Parking Guidelines: Yes (Selectable), Type (Adjustable), Height and Width (Adjustable)
One Button Control: Image Orientation Select, Video Mode Select, Guideline Type Adjust, Guideline Height Adjust, Guideline Width Adjust
Image Orientation: Mirror, Normal, Upside-Down Mirror, Upside-Down Normal (Switchable)
Min Illumination: 0.3 Lux
Water/Dust Protect: IP67
Power Input: 12/24V DC
Mounting: Number Plate or In-Bumper
Connection: RCA
Dimensions: 16.5mm x 23mm (D)
Includes: Monitor, Dual Mount Camera, 6m Camera to Monitor Lead (RCA Male) with Power Wires for reverse triggering, Metal Hole Saw
