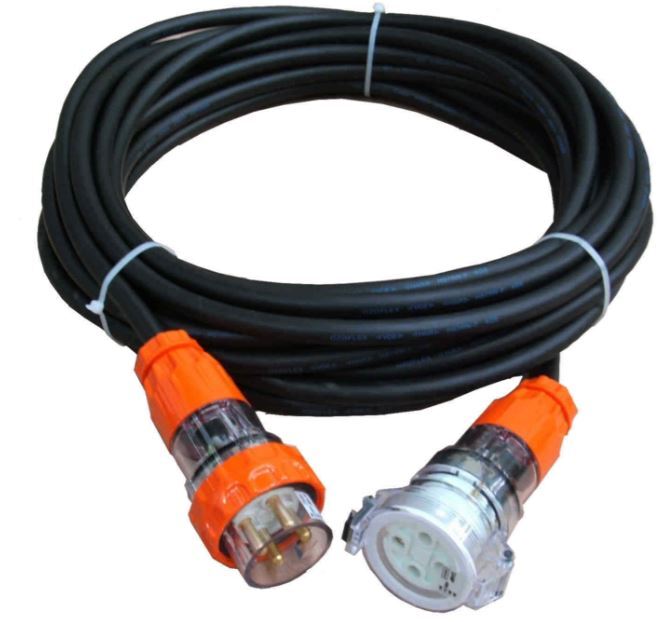

32 Amp 10m 240V Heavy Duty Industrial Extension Lead. Cable :6mm²R.

32 Amp Australian Standard
Single Phase(240V)
3 Round Pins
Heavy Duty
Industrial Extension Lead
Length: 10 m
Heavy Duty:
The “Heavy Duty” extension lead is suitable for extended use outdoors or in environments with higher ambient temperatures.
The “Heavy Duty” extension lead has a longer maximum length allowed from the outlet to the appliance than the “Light Duty” extension lead.
The maximum length for general use: 50m
The maximum length for use with any equipment that has a high starting current: 25m
Applications:
Wet and oily environments
Construction site leads
Submersible Pumps
Flexible connections to motors, generators, compressors e.g.
Drills and pumps
Saws and log splitters
Cranes and Hoists
Handheld drills
Grinders and welders
Agricultural equipment
Generators
3 phase Vacuums and floor grinders.
Event and temporary cabling e.g.
fairgrounds
sporting venues
Stage and theatre power.
The extension lead is suitable for dry, damp and wet environments; areas of stress caused by vibration or impact they are resistant to abrasion, exposure to radiated heat and chemical contamination. Because of the black, flame retardant sheath, it is suitable for areas subject to fire hazard and hazardous locations like engineering workshops.
Maximum Ambient temperature: 40 degC
Maximum Continuous Length: 50m (with a 3 percent voltage drop)
Maximum current at 40 degC: 42A
Cable Specifications:
Cable CSA:6mm2
Max Voltage: 06/1kV
Insulation: Ethelyne-propylene rubber (EPR) R-EP-90 90 deg C Conductor
Sheath Colour: Black - UV, sunlight and weather resistant.
Cable Temperature Range: -25 deg C to +90 deg C (mobile) -40 deg c to +90 Deg C (fixed)
Maximum permissible short circuit temperature: 250 deg C for 1 Sec
