APPLICATION:

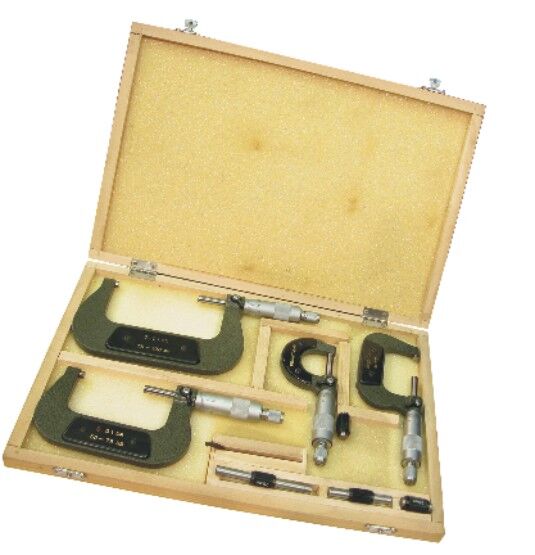

Used for the precise measurement of components or thicknesses between two faces. 4 piece set with metric analogue scales and a measuring range of 0 - 100mm
FEATURES:
Satin finish with black micro fine graduations (0.01mm)
Hammer tone finished cast frames
Knurled finger thimble ratchet stop adjustment
One handed operation with thumb lock lever
Hardened carbide measuring faces
Supplied in wooden, hinged lid case with EVA foam tray to prevent corrosion damage and provide safe storage when not in use
SPECIFICATIONS:
Measurement ranges (4 piece); 0-25mm, 25-50mm, 50 - 75mm, and 75 - 100mm
Measurement face size; 6.5mm, flatness 0.0008mm
Calibrating adjustment spanner and precision thickness wedges included
Packaged dimensions (L x W x H ):340 x 230 x 28mm
Weight(net):1.8kg
(59085)
SKU
59085
Barcode #
9.33532E+12
Brand
Grip
Shipping Weight
2.0000kg
Shipping Width
0.350m
Shipping Height
0.100m
Shipping Length
0.350m
