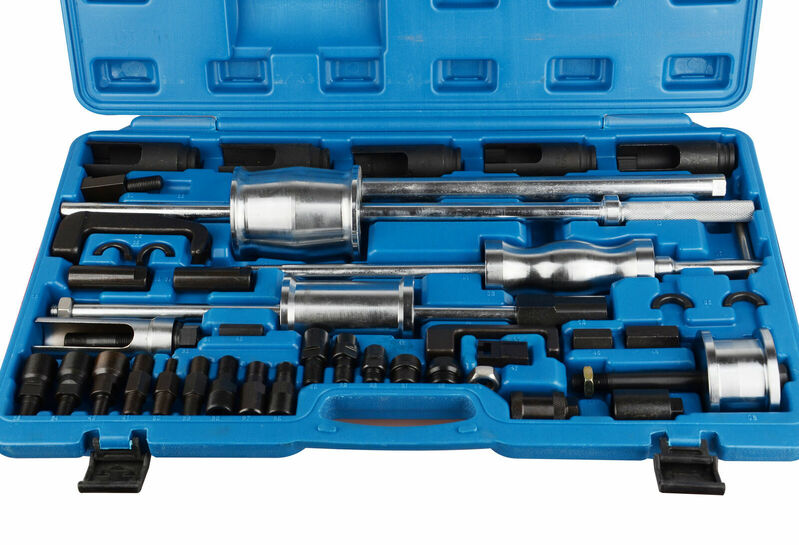

40pc Diesel Injector Extractor Removal Tool
SKU:EAU0394
Specifications:
For removal of diesel injectors
Various adaptors make the kit suitable for most diesel injectors
Includes also the following components:
3 different slide hammers
1.6 kg, 160 mm length
2.7 kg, 460 mm length
5.1 kg, 600 mm length
2 pulling claws with fork opening
13.7 x 18 mm, 105 mm length
12.7 x 19 mm, 130 mm length
5 slotted 6-pt 1/2" sockets, 100 mm length
sizes 25 - 27 - 28 - 29 - 30 mm
Injector extractor, sleeve design, with shells
outer diameter 35 mm
internal diameter 29 mm
M17 x 1.0 spindle
Pulling adapter with external thread
M27 x 1.0 (3pcs) and M25 x 1.0
Pulling adapter with internal thread
M27 x 1.0 (3pcs)
Sliding hammer adapter for
inner, outer and claw extractor
For removal of diesel injectors
Various adaptors make the kit suitable for most diesel injectors
Includes also the following components:
3 different slide hammers
1.6 kg, 160 mm length
2.7 kg, 460 mm length
5.1 kg, 600 mm length
2 pulling claws with fork opening
13.7 x 18 mm, 105 mm length
12.7 x 19 mm, 130 mm length
5 slotted 6-pt 1/2" sockets, 100 mm length
sizes 25 - 27 - 28 - 29 - 30 mm
Injector extractor, sleeve design, with shells
outer diameter 35 mm
internal diameter 29 mm
M17 x 1.0 spindle
Pulling adapter with external thread
M27 x 1.0 (3pcs) and M25 x 1.0
Pulling adapter with internal thread
M27 x 1.0 (3pcs)
Sliding hammer adapter for
inner, outer and claw extractor
(EAU0394)
SKU | EAU0394 |
Barcode # | 9310754894413 |
Shipping Weight | 6.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.060m |
Shipping Length | 0.500m |
