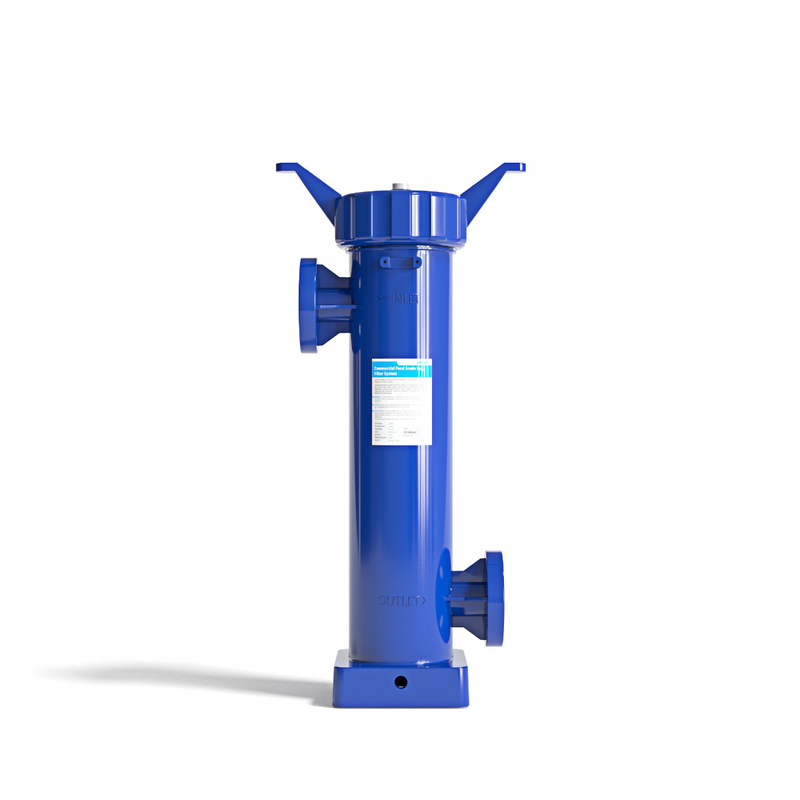

#5 Bag Filter Housing - Food Grade PP (NSF) - Blue Colour | DN50 (2") Flange Inlet/Outlet
SKU:HPF-P5
RRP $1,980.00
$1,491.60
SAVE $488.40 (25%)
Not Available In Store
Calculate Shipping
Technical Specifications:
Filter Type: Convertible
Bag Size: 5A or #5 (15cm x 51cm or 6" diameter by 20" length)
Material: Food Grade, Chemical Resistant Polypropylene
Internal design: Clean Wall
Max Pressure: 800 kPa/8 Bar/116 PSI
Working Pressure: ≤ 700 kpa/7 Bar/101 PSI
Max Working Temperature: -1°C to 90°C
Max Flow: 22m3/hour depending on micron rating + feedwater conditions
Differential Pressure: 0.1 bar depending on micron rating + feedwater conditions
Lid Closure: Thread Type
Seal Type: Positive Seal
Inlet & Outlet Flange: DN50 2"
Pressure Gauge Port: 1/2" PT Female
Drain Outlet Port: 1/2" PT Female
Base Drill Holes: 4x 1.8cm
Filter Type: Convertible
Bag Size: 5A or #5 (15cm x 51cm or 6" diameter by 20" length)
Material: Food Grade, Chemical Resistant Polypropylene
Internal design: Clean Wall
Max Pressure: 800 kPa/8 Bar/116 PSI
Working Pressure: ≤ 700 kpa/7 Bar/101 PSI
Max Working Temperature: -1°C to 90°C
Max Flow: 22m3/hour depending on micron rating + feedwater conditions
Differential Pressure: 0.1 bar depending on micron rating + feedwater conditions
Lid Closure: Thread Type
Seal Type: Positive Seal
Inlet & Outlet Flange: DN50 2"
Pressure Gauge Port: 1/2" PT Female
Drain Outlet Port: 1/2" PT Female
Base Drill Holes: 4x 1.8cm
(HPF-P5)
| SKU | HPF-P5 |
| Brand | FSA |
| Shipping Weight | 25.0000kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.400m |
| Shipping Length | 0.850m |
