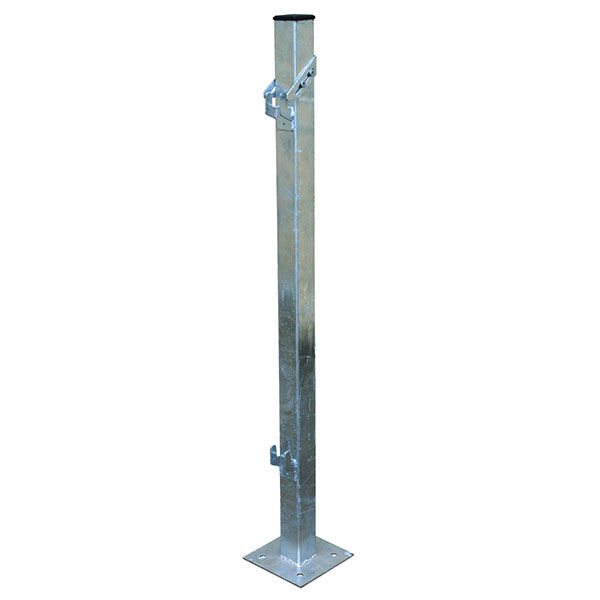

50x50 Edge Protection Post 1m
SKU:07-EPPOST
The XT Barrier Edge Protection Systemâ„¢ mesh panels can be fixed using these specialised XT Barrier System Posts.
Made from galvanised 50mm square RHS, these 1005mm high posts incorporate a top and bottom wire panel holding lugs with slide and lock assemblies, making panel installation and removal quick and simple.
The Fortress XT Barriers can be fixed to concrete or paving using these posts. The low profile square fixing flange is easily fixed with masonry bolts however engineering advice must be sought for requirements of concrete specifications.
Ideal for fixing to concrete paved areas
152mm square x 5mm fixing flange
Fix with 4 x 13 mm diameter holes for use with four 10 x 75mm masonry bolts or similar
Strong galvanized 50mm square RHS
Tested & approved to AS 4994.1:2009Screw bolts sold separately
Secure locking lugs hold mesh panels in place
Made from galvanised 50mm square RHS, these 1005mm high posts incorporate a top and bottom wire panel holding lugs with slide and lock assemblies, making panel installation and removal quick and simple.
The Fortress XT Barriers can be fixed to concrete or paving using these posts. The low profile square fixing flange is easily fixed with masonry bolts however engineering advice must be sought for requirements of concrete specifications.
Ideal for fixing to concrete paved areas
152mm square x 5mm fixing flange
Fix with 4 x 13 mm diameter holes for use with four 10 x 75mm masonry bolts or similar
Strong galvanized 50mm square RHS
Tested & approved to AS 4994.1:2009Screw bolts sold separately
Secure locking lugs hold mesh panels in place
(07-EPPOST)
SKU | 07-EPPOST |
Barcode # | 9310754998456 |
Shipping Weight | 250.0000kg |
Shipping Width | 0.152m |
Shipping Height | 0.152m |
Shipping Length | 1.005m |
