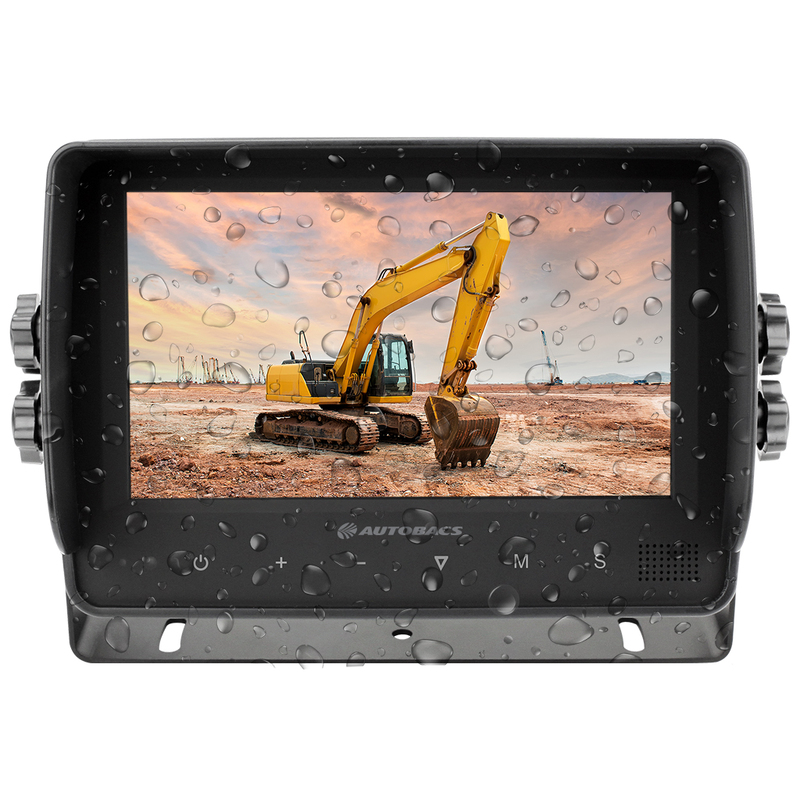

7inch Hi Res Waterproof Monitor
SKU:HD73WP
Specifications:
TFT Panel: New Grade A LCD
LCD Size: 178mm (7-Inch) Diagonal
Display Format: 16:9
Resolution: 1024 x 600
Contrast: 700:1
Video Connect: 3 x 4-Pin (Male)
Compatibility: Standard & High Resolution Cameras
Video System: AHD/PAL/NTSC/AUTO
Viewing Angles: 85° (Left/Right/Up/Down)
Buttons: Touch Sensitive
Connection Type: Universal Standard 4-Pin Configuration (M)
Camera Triggers: 3
Monitor View: Normal/Mirror/Flip/Mirror-Flip Image Select
A34 Audio output: Built-in 1W
Waterproof: IP66
Power Input: 10-32V DC (Negative Ground)
Power consumption: -10W
Operating temperature: -20-+70ºC, RH90%
Storage temperature: -30-+80ºC, RH90%
Dimensions:
Not Including Bracket: 197W x 132H x 34D mm
Including Bracket: 228W x 154H x 34D mm
INCLUDED
Monitor
Sunshade
U-Bracket
Stand mount
Power & Trigger Cables
Thumb Screws x4
Nylon Washers x4
TFT Panel: New Grade A LCD
LCD Size: 178mm (7-Inch) Diagonal
Display Format: 16:9
Resolution: 1024 x 600
Contrast: 700:1
Video Connect: 3 x 4-Pin (Male)
Compatibility: Standard & High Resolution Cameras
Video System: AHD/PAL/NTSC/AUTO
Viewing Angles: 85° (Left/Right/Up/Down)
Buttons: Touch Sensitive
Connection Type: Universal Standard 4-Pin Configuration (M)
Camera Triggers: 3
Monitor View: Normal/Mirror/Flip/Mirror-Flip Image Select
A34 Audio output: Built-in 1W
Waterproof: IP66
Power Input: 10-32V DC (Negative Ground)
Power consumption: -10W
Operating temperature: -20-+70ºC, RH90%
Storage temperature: -30-+80ºC, RH90%
Dimensions:
Not Including Bracket: 197W x 132H x 34D mm
Including Bracket: 228W x 154H x 34D mm
INCLUDED
Monitor
Sunshade
U-Bracket
Stand mount
Power & Trigger Cables
Thumb Screws x4
Nylon Washers x4
(HD73WP)
SKU | HD73WP |
Brand | Autobacs |
Shipping Weight | 1.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.150m |
Shipping Length | 0.250m |
