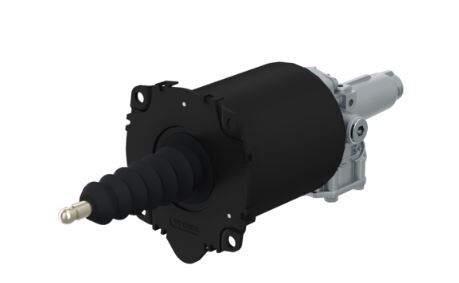

9700514240 Clutch Servo
SKU:9700514240
RRP $1,040.40
$843.26
SAVE $197.14 (19%)
Not Available In Store
Calculate Shipping
Brand: WABCO Original
Part type : Premium original quality
Technical Specification: OE specification
Product Category : Device
Comments: ZF-FO
Distance between holes: 130.0 mm
Length: 391 mm
Max. operating pressure: 10.0 bar
Mounting: 4x dia 9.0 mm
Oil inlet: Brake fluid SAE J 1703
Port Thread 1-4: M14 x 1.5 ( B )
Port Thread 32: dia 8.0 mm
Port thread 11: M16 x 1.5 JED - 464
Port thread 31: Flap Exhaust
Push-rod thread: Ball dia 12.0 mm
Stroke: 85.0 mm
Temperature range: -40 degC to +80 degC
Calculated Volume (dm3): 7.247
Size (mm x mm x mm): 395 x 139 x 132
Part type : Premium original quality
Technical Specification: OE specification
Product Category : Device
Comments: ZF-FO
Distance between holes: 130.0 mm
Length: 391 mm
Max. operating pressure: 10.0 bar
Mounting: 4x dia 9.0 mm
Oil inlet: Brake fluid SAE J 1703
Port Thread 1-4: M14 x 1.5 ( B )
Port Thread 32: dia 8.0 mm
Port thread 11: M16 x 1.5 JED - 464
Port thread 31: Flap Exhaust
Push-rod thread: Ball dia 12.0 mm
Stroke: 85.0 mm
Temperature range: -40 degC to +80 degC
Calculated Volume (dm3): 7.247
Size (mm x mm x mm): 395 x 139 x 132
(9700514240)
| SKU | 9700514240 |
| Barcode # | 9.31075E+12 |
| Brand | Wabco |
| Shipping Weight | 2.5000kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.150m |
| Shipping Length | 0.400m |
