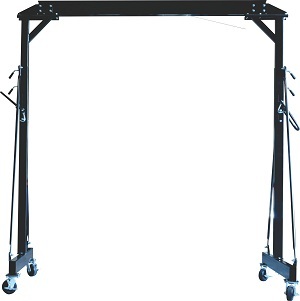

Adjustable Wheeled Gantry 950Kg

APPLICATION:
To safely facilitate the lifting of heavy component objects and materials, especially when safe, level lifting is essential .Ideal for maintenance, manufacturing and other material handling jobs. An ideal companion for use with "Grip” chain blocks, levering chain hoists, heavy duty engine load leveller and adjustable girder trolley. Please note these products are not included with the gantry.
Caution: Gantry is not to be moved while loaded.
FEATURES:
Heavy duty all steel construction.
"I” beam cross member for added strength.
Quick release safety locking pins on both sides.
4 × 125mm diameter heavy duty swivel castor wheels, with brakes for greater manuverability and stability.
Easy assembly and disassembly allows easy transport within the workplace or from site to site.
Black baked enamel finish for corrosion resistance.
Australian Standard compliance.
SPECIFICATIONS:
Working load capacity 950kg
Adjustable height 2500 - 3600 mm.
Inside frame clearance 2300mm.
Shipping box dimensions (L x H x W) 2260 × 200 × 500 mm.
Weight (nett) 154kg.
