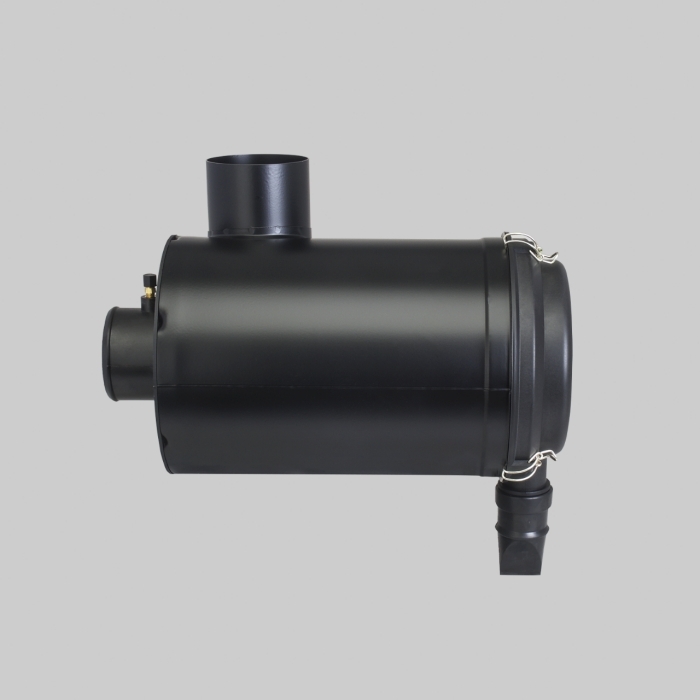

Air Cleaner Assembly

Attributes:
Inlet Diameter: 114.3 mm (4.50 inch)
Outlet Diameter: 104.2 mm (4.10 inch)
Body Diameter Maximum: 258.8 mm (10.19 inch)
Body Length: 358.5 mm (14.11 inch)
Overall Length: 495.7 mm (19.52 inch)
Rated Flow LR: 7.6 m3/min (268 cfm)
Rated Flow MR: 8.6 m3/min (304 cfm)
Rated Flow HR: 9.6 m3/min (339 cfm)
Restriction LR: 152 mm H2O (5.98 inch H2O)
Restriction MR: 203 mm H2O (7.99 inch H2O)
Restriction HR: 254 mm H2O (10.00 inch H2O)
Style: Radialseal
Family: FRG
Brand: RadialSeal
