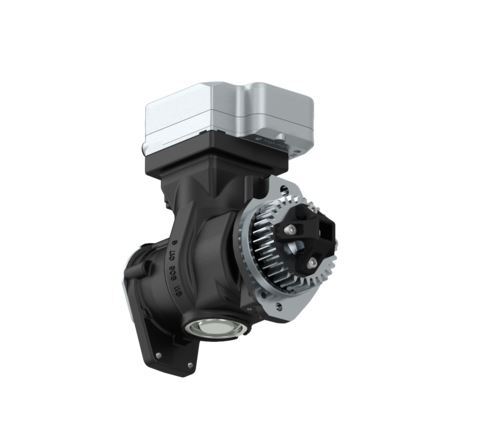

AIR COMPRESSOR WESTERN STAR (EXCHANGE)

Brand: WABCO Reman Solutions
Part type: Remanufactured
Cooling: Water
Crankshaft thread: M20 x 1.5
Lubrication: Lubrication supplied from engine
Max. operating pressure: 10.0 bar
Mounting: Flange mounting
Operating speed: 3000 (1/min)
Piston diameter: 85 mm
Piston stroke: 56 mm
Port thread 0: dia 20.5 mm
Port thread 2: M27 x 2.0
Port thread 4: M10 x 1.0
Port thread 8.1: dia 8 mm
Port thread 9 M18 x 1.5
Port thread 9.1: M18 x 1.5
Port thread 9.2 M18 x 1.5
Product category: Device
Swept volume (cm3): 318 cm3
Technical specification: OE specification
Temperature range: -30 degC to +90 degC
Type: Single Cylinder
Calculated Volume (dm3): 13.98
Size (mm x mm x mm): 297.6 x 151.1 x 310.8
UPC: 193133018490
Weight (kg): 19.5
Weight (lb): 42.99
