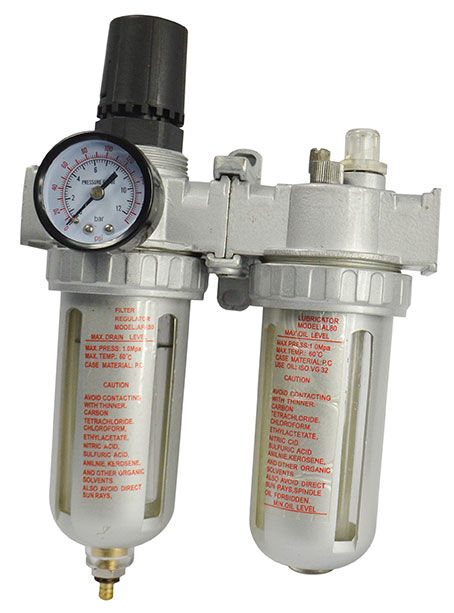

Air Filter Regulator & Lubricator

This filter regulator removes solid particles and condensation from compressed air and then prepares this compressed air with the correct proportion of lubricating oil and distributes it for general air tool use. This unit should NOT be used for preparing compressed air for spray painting or sandblasting as the lubricating oil will contaminate the paint and/or blast media. However, if the unit is split the filter regulator/moisture control bowl unit CAN be successfully used to prepare compressed air for spray painting or sandblasting.
FEATURES:
Unique mounting bracket mates both bowl units together and creates unified flow or adversely allows them to be split for individual regulator/moisture control and lubrication distribution
Pull down release drain valve in regulator/moisture bowl
Micro lubricator bowl supplies lubricating oil in the correct proportions to air tools whilst being used
Easy to read 40mm diameter dual scale air pressure gauge
SPECIFICATIONS:
Maximum rated air pressure: 150 PSI
Bowl Height: 115mm
Air inlet size: 1/4” NPT
Packaged dimensions (L x W x H ): 295 x 190 x 70 mm
Weight(net): 1 KG
