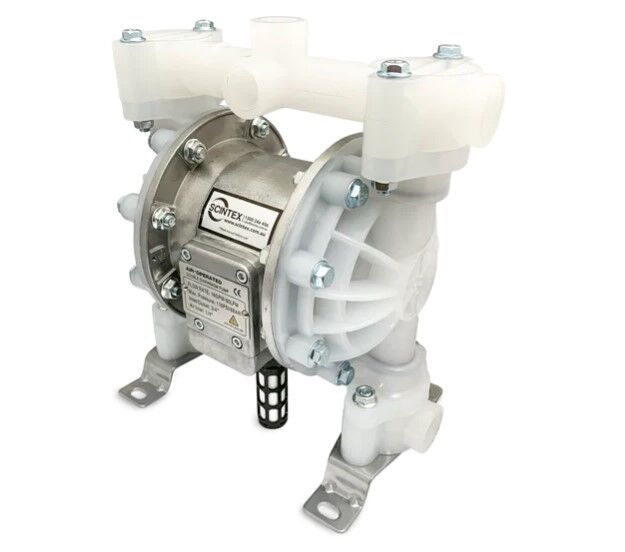

Air Driven Diaphragm Pump - Polypropylene

Pneumatic Pump Features:
60LPM, 90LPM & 240LPM pump sizes available
1:1 Pressure Ratio
High suction lift capabilities
Self priming
Simple design ensures high reliability with complex fluids
Includes grounding capability to eliminate static discharge
Externally serviceable air distribution system
Bolted construction ensuring long life with ease of maintenance
Specifications:
Flow Rate: 90LPM
Inlet / Outlet: 1"
Air Inlet: 1/4"
Max. Air Inlet Pressure: 115 PSI / 8 BAR
Max. Outlet Pressure: 115 PSI / 8 BAR
Pressure Ratio: 1:1
Max. Fluid Pressure: 115 PSI / 8 BAR
Max. Discharge Head: -80 m
Max. Fluid Temperature: 60 degC
Max. Solid Diameter: 3mm
Weight: 12kg
Frame Material: Polyproplene
Diaphragm Material and Seals: Viton, CPP, PTFE
Compatible Fluids: Diesel, Oils, Water, Adblue, Compatible Chemicals
Warranty: 12 Months
