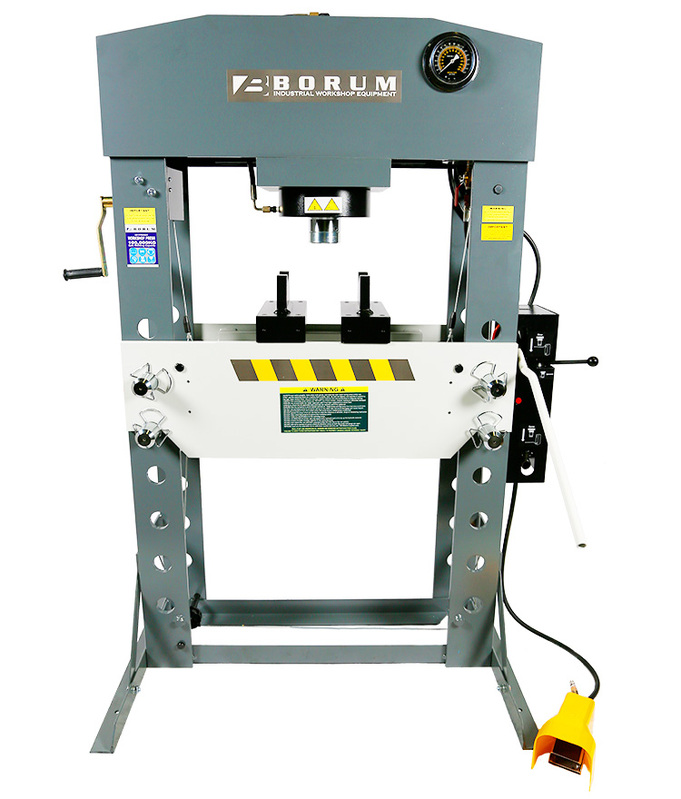

Air/Hydraulic Press 100,000Kg

Features:
Heavy-duty H-frame constructed of high-grade steel and built to exacting standards for quality and durability
Foot operated air trigger ram travel control
100mm pressure gauge
Table winch system lowers or raises the bed
High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
Piston-ram is treated and polished and fitted with backup ring, preventing load from falling slowly or bypassing oil drift
Hydraulics are powered with a high quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures
Integrated overload protection valve keeps from overloading the system
Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
Paint is oil, grease and dirt-resistant for easy clean up
Extra tall working range for versatility
Pair of bed plates included
Specifications:
Safe Working Capacity: 100,000kg
Working Range: 113-813mm
Overall Height: 2048mm
Overall Width: 1199mm
Overall Depth: 990mm
Bed Width: 787mm
Piston Ram Stroke: 300mm
Bed Height Settings: 6
Operating Air Pressure: 110-125psi
Air Inlet: 1/4"NPT
Nett Weight: 652kg
Crate: 2044 x 1150 x 524mm
Gross Weight: 762kg
Intended Use
Ideal for straightening, stamping, bending and pressing any component that is difficult to handle.
