Air / Hydraulic Pump 10000Psi

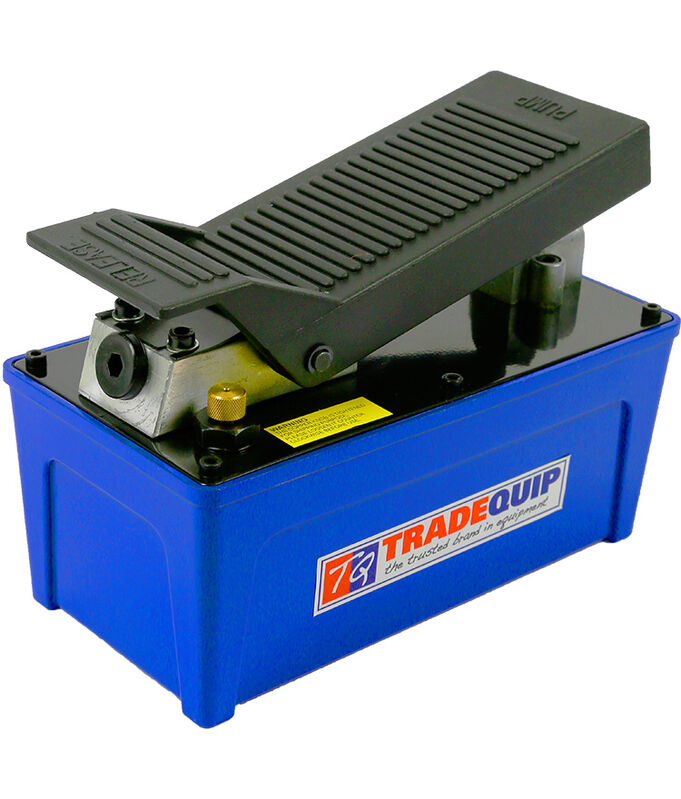

This "TradeQuip Made for the Trade" hand or foot hydraulic air pump is designed to operate pneumatically. It is an ideal power source for various body, frame and alignment applications and can be used with different ram kits, shop presses and hydraulic pullers (not included) that operate with a hydraulic oil pressure requirement of up to 10,000 psi. Constructed for safety, durability and high-flow oil delivery, this air hydraulic pump will deliver high-quality performance in addition to fine metering capabilities that provide more precise control. This heavy duty TradeQuip Air-hydraulic Pump connects via a 1/4" NPT air nipple and a 3/8" NPT hydraulic hose adaptor.
Hydraulic hose and adaptor kit not included. Available separately use Product Code: 2054-H
Features:
Durable light-weight corrosion-free aluminium
Built-in overload system prevents pump from being used beyond its safety capacity
Ergonomic hand/foot activation lever
Air/oil filters minimise contaminants in hydraulic system
Perfect for porta power rams and bead breakers
Compact design fits in service truck storage boxes
Air exhaust muffler for quiet operation
Specifications:
Maximum Output Pressure: 10,000psi
Usable Hydraulic Fluid Capacity: 2.25 Litres
Operating Air Pressure: 90-145 psi
Air Consumption: 7.5CFM at 100 psi
Oil Delivery with No Load: 49.5 cu.in/min
Oil Delivery with Load: 7.6 cu.in/min
Input (Air) port thread: 1/4" -18 NPT
Output (Oil) port thread: 3/8" -18 NPT
Weight: 8kg
Carton: 300 x 170 x 205mm
