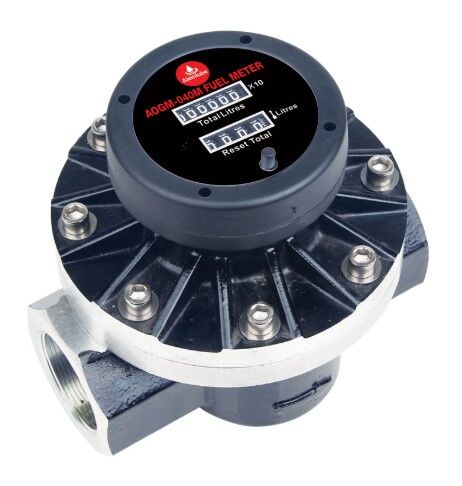

Alemlube Mechanical Oval Gear Meter 1-1/2" BSP(f) 250LPM

Highly sensitive to low flow rates and very accurate over their entire flow ranges
Vacuum sealed
Leak proof and dry totaliser
Self-lubricating gears
Long maintenance free working life
Robust & durable
Model : AOGM-025M AOGM-040M AOGM-050M
Inlet & Outlet Ports : 1" BSP(f) 1-1/2" BSP(f) 2" BSP(f)
Minimum Flow Rate : 20L/min 25L/min 30L/min
Maximum Flow Rate : 120L/min 250L/min 300L/min
Accuracy Model : ±0.5% ±0.5% ±0.5%
Repeatability : 0.03% 0.03% 0.03%
Maximum Viscosity : 1000CPS 1000CPS 1000CPS
Maximum OperatingPressure: 490 PSI (34Bar) 260 PSI (18Bar) 260 PSI (18Bar)
Body Material: Aluminium
