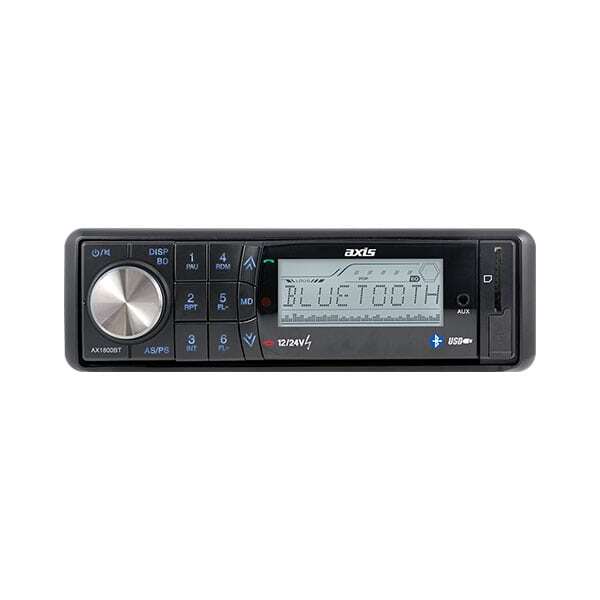

AM/FM Radio Receiver 12/24v
SKU:AX1800BT
Description:
12/24V MECHLESS with BLUETOOTH – SHORT CHASSIS (86mm)
Specifications:
GENERAL:
Fixed Face Panel
Mechless (without CD deck)
“Ultra Memory” To retain preset settings after battery is disconnected
Illuminated Controls (Blue)
FSTN Display for Wide Angle Viewing
ISO DIN Mounting
Mounting Depth 86mm
Mini DIN Chassis: 178W x 50H x 86Dmm
12/24 Volt DC (10.8-32V) Negative Ground
2 Ch RCA Line Out – 5 Volt (Max)
Speaker Impedance 4-8 Ohm
Max Power 25 Watts x 4 Ch
MULTIMEDIA:
USB Input: Front Panel
SD / MMC Card Port: Front Panel
AUX-IN: Front Panel (3.5mm)
MP3 / WMA Player
Intro / Repeat / Random Play / Pause
Track Down / Up / Select (MP3/WMA Files)
TUNER:
PLL Synthesized AM/FM Stereo
Xtreme Long Range Tuner
FM 87.5-108 MHz; AM 522-1710 KHz
Interference Absorption Circuit
30 Station Presets – 18FM/12AM Memory
Station Seek / Preset Scan / Auto Store
Automatic or Manual Tuning
Local / Distant Control
Mono / Stereo
Digital Clock
BLUETOOTH:
Bluetooth in Phone Mode
Pick-Up/End Call
A2DP Audio Streaming
AUDIO CONTROL:
Rotary Encoder
Electronic Volume / Balance / Fader / Bass / Treble
Loud / Mute
4-Band DSP Settings
INCLUDED:
Remote Control
External Microphone
ISO Wiring Harness
Installation Hardware
.a
12/24V MECHLESS with BLUETOOTH – SHORT CHASSIS (86mm)
Specifications:
GENERAL:
Fixed Face Panel
Mechless (without CD deck)
“Ultra Memory” To retain preset settings after battery is disconnected
Illuminated Controls (Blue)
FSTN Display for Wide Angle Viewing
ISO DIN Mounting
Mounting Depth 86mm
Mini DIN Chassis: 178W x 50H x 86Dmm
12/24 Volt DC (10.8-32V) Negative Ground
2 Ch RCA Line Out – 5 Volt (Max)
Speaker Impedance 4-8 Ohm
Max Power 25 Watts x 4 Ch
MULTIMEDIA:
USB Input: Front Panel
SD / MMC Card Port: Front Panel
AUX-IN: Front Panel (3.5mm)
MP3 / WMA Player
Intro / Repeat / Random Play / Pause
Track Down / Up / Select (MP3/WMA Files)
TUNER:
PLL Synthesized AM/FM Stereo
Xtreme Long Range Tuner
FM 87.5-108 MHz; AM 522-1710 KHz
Interference Absorption Circuit
30 Station Presets – 18FM/12AM Memory
Station Seek / Preset Scan / Auto Store
Automatic or Manual Tuning
Local / Distant Control
Mono / Stereo
Digital Clock
BLUETOOTH:
Bluetooth in Phone Mode
Pick-Up/End Call
A2DP Audio Streaming
AUDIO CONTROL:
Rotary Encoder
Electronic Volume / Balance / Fader / Bass / Treble
Loud / Mute
4-Band DSP Settings
INCLUDED:
Remote Control
External Microphone
ISO Wiring Harness
Installation Hardware
.a
(AX1800BT)
SKU | AX1800BT |
Barcode # | 9321886013993 |
Brand | Axis |
Shipping Weight | 1.0000kg |
Shipping Width | 0.100m |
Shipping Height | 0.100m |
Shipping Length | 0.200m |
