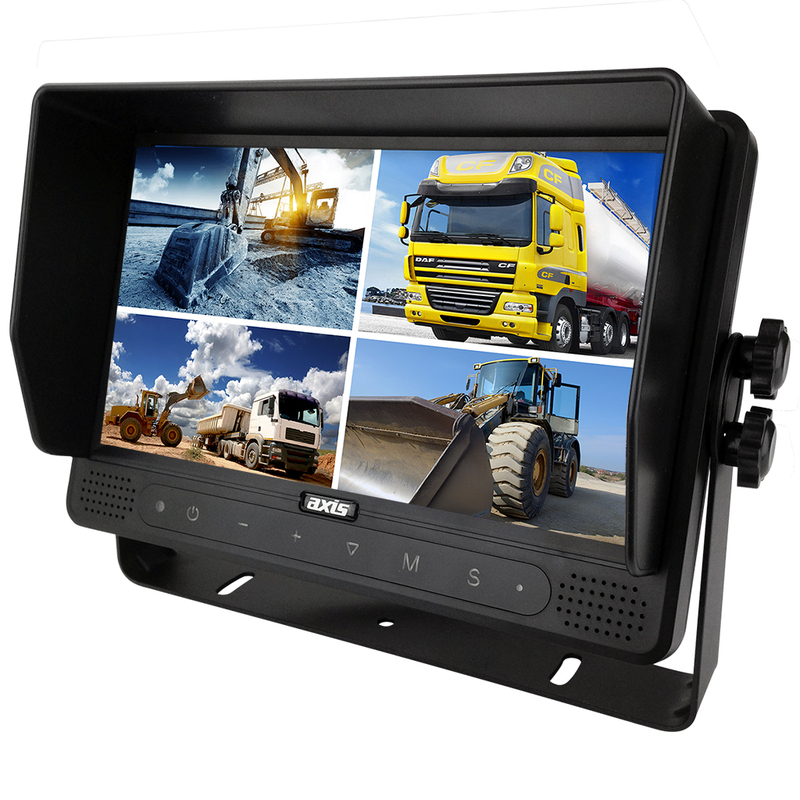

Axis 9 Inch High Resolution Quad View Monitor
SKU:HD1409Q
The HD1409Q, is an exceptional High Resolution 12/24V quad view monitor designed to provide a crystal-clear image and enhanced viewing experience. With its robust Heavy Duty construction, this monitor is perfect for trucks, machinery, and various vehicles. The HD1409Q offers the added advantage of connecting up to 4 cameras, providing incredible flexibility for monitoring multiple angles simultaneously.
Specifications:
LCD Size: 9inch
Display Format: 16:9
Resolution: 1024 x 600
Split Screen: Single/Dual/Triplex/Quad/Trefoil/Y-Split/H-Split/PIP
Brightness: 650 cd/m2
Viewing Angles: 85 degree Left/Right/Up/Down
Touch Screen: Capacitive
Video System: Auto PAL/NTSC/720P/1080P Select
Video Input Connectors: 4 x 4-Pin Aviation (Male)
Connection Type: Universal Standard 4-Pin Configuration (M)
Camera Triggers: 5
Guidelines: Selectable On/Off
Audio: Built-In Speaker
Operating Temp: -20 degC to +70 degC
Voltage Input: 10-32V DC (Negative Ground)
Dimensions: 234W x 158H x 39.75D mm (Excluding bracket & visor)
Specifications:
LCD Size: 9inch
Display Format: 16:9
Resolution: 1024 x 600
Split Screen: Single/Dual/Triplex/Quad/Trefoil/Y-Split/H-Split/PIP
Brightness: 650 cd/m2
Viewing Angles: 85 degree Left/Right/Up/Down
Touch Screen: Capacitive
Video System: Auto PAL/NTSC/720P/1080P Select
Video Input Connectors: 4 x 4-Pin Aviation (Male)
Connection Type: Universal Standard 4-Pin Configuration (M)
Camera Triggers: 5
Guidelines: Selectable On/Off
Audio: Built-In Speaker
Operating Temp: -20 degC to +70 degC
Voltage Input: 10-32V DC (Negative Ground)
Dimensions: 234W x 158H x 39.75D mm (Excluding bracket & visor)
(HD1409Q)
SKU | HD1409Q |
Brand | Axis |
Shipping Weight | 1.0000kg |
Shipping Width | 0.150m |
Shipping Height | 0.100m |
Shipping Length | 0.200m |
