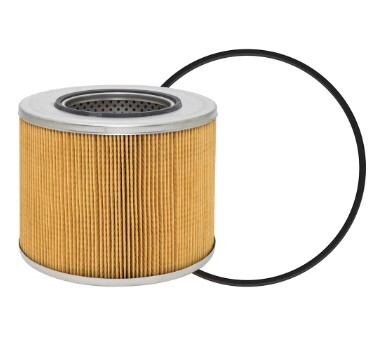

Baldwin Dahl Fuel Filter Series

Technical Specifications:
Width: 190.5 mm, 7 1/2
Absolute Micron: 20
Brand: Hastings
Division: Engine Mobile Aftermarket
For Fluid Type: Fuel
For Use With: DAHL 200 Series Fuel Filter/Water Separator Units
Height: 22.25 inch, 565.15 mm
Includes: [1] Attached A Gskt, 200-15A F Gskt, [1] Attached O-Ring:
Inside Diameter: 3 9/32 inch, 83.3 mm
Length: 4 5/8 inch, 117.5 mm
Industry: Oil & Gas
Outside Diameter: 6 1/16 inch, 154 mm
Perinch: 12 w/O-Ring Boss
Product Type: DAHL Fuel Element
Substance: Diesel, bio-diesel blends up to B-20 and gasoline
Technology: Filtration
Thread Size: 1 1/6
Product Type: DAHL Fuel Element
Outside Diameter: 6 1/16 (154.0)
Inside Diameter: 1 15/32 (37.3) & 3 9/32 (83.3)
Length: 4 5/8 (117.5)
Gasket: Attached Gasket: [1] Included; Furnished Gasket: 200-15A
O-ring: [1] Attached
Micron Rating: 4 Nominal; 20 Absolute
Application: DAHL 200 Series Fuel Filter/Water Separator Units
