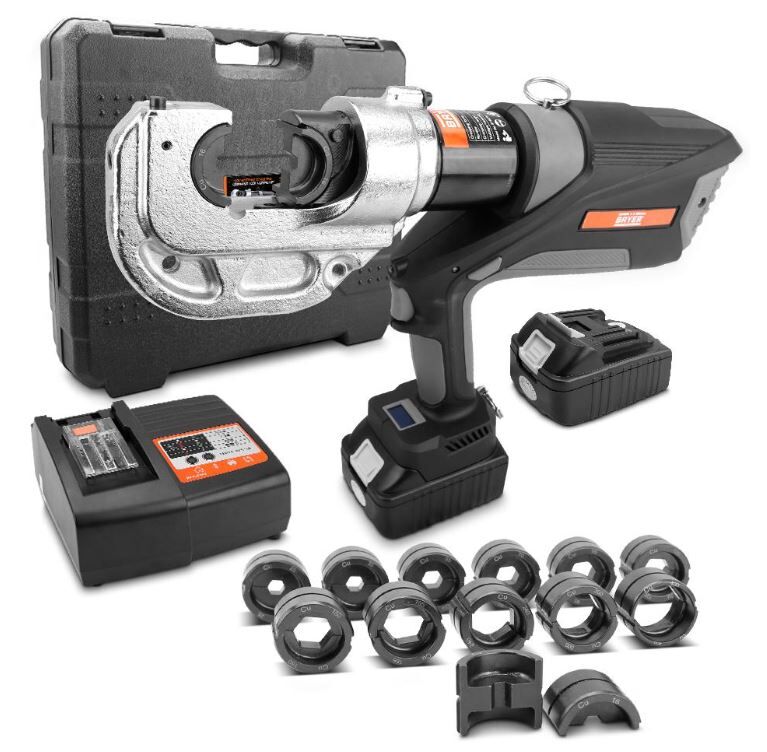

Bayer B18CTK 18V 3.0Ah Li-ion Brushless Cordless Crimper Combo Kit

Bayer B18CTK 18V 3.0Ah Li-ion Brushless Cordless Crimper Combo Kit
The Bayer B18CTK is a tool for crimping Cu/Al lugs with cables from 16-400 mm2. It is powered by Li-ion, actuated by brushless motor and controlled by MCU. With a high pressure hydraulic system and longer life, saving more power, it is a perfect tool to be used in electrical construction site.
Includes:
2 x 18v Batteries
1 x 18v Charger
1 x Sealing ring of cylinder
1 x Sealing ring of safety valve
12 x Crimping dies:
16mm2
25mm2
35mm2
50mm2
70mm2
95mm2
120mm2
150mm2
185mm2
240mm2
300mm2
400mm2
1 x Sholder Strap
1 x Heavy Duty Carry Case
Features:
Micro computer control system-automatically detects the pressure when in crimping with double safety protect.
The tool is equipped with a double piston pump which is characterised with a fast approach towards the connecting material and transfers to a higher pressure automatically by slowing the crimper. If there is a deviation from the set operation pressure or a batterys low on power, it is Identified by an acoustic sound and a red light flashing on the display.
One key control - press the trigger to start operating, half loosing the trigger will stop the forcing pressure, loosing it fully return the piston to the original position.
A Temperature sensor makes the tool stop working automatically when the temperature reaches over 60 degC after working for a long period of time. If the fault signal sounds, it means the tool can't continue to work until the temperature has reduced to the normal.
Specifications:
Voltage: 18v
Battey Capacity: 3.0Ah
Crimping Force: 120KN (12 MT)
Stroke: 42mm
Ambient Temperature: -10-40 degC
Crimping Range:16-400mm2
Crimp/Charge: 120 times (Cu150mm2)
Crimping Cycle: 6s-18s (depends on the size of the cable)
Charging Time: 1hr
Hydraulic Oil: Shell Tellus T15
Oil Capacity: 160ml
Dimentions (L x W x H): 418mm x 320mm x 83mm
Crimper Weight: 6.53kg
Warranty:
1 year Warranty
