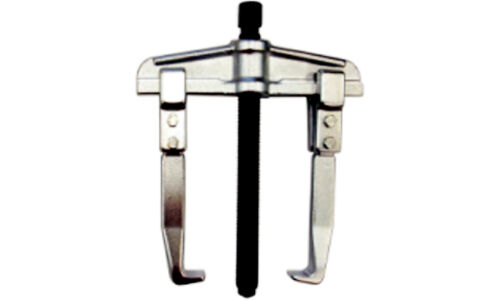

No.9566 - Thin Jaw Two Leg Puller (6.7kg)

RRP $543.24

$406.89

SAVE $136.35 (25%)

Not Available In Store

Calculate Shipping

This series of two arm cross block thin arm pullers are fully adjustable and reversible for internal and external pulling applications. Ideal pullers required when there is limited clearance behind gears and bearings.

Nine sizes are available to cover a range from 25mm right up to 640mm as listed in the table below.

Item No.	Description	Spread	Reach	Inside Spread	Weight
9561	Thin Jaw Two Leg Puller	25 to 70mm	45mm	70 to 130mm	0.6kg
9562	Thin Jaw Two Leg Puller	25 to 80mm	100mm	70 to 130mm	1.0kg
9563	Thin Jaw Two Leg Puller	25 to 130mm	100mm	80 to 180mm	1.1kg
9564	Thin Jaw Two Leg Puller	50 to 160mm	150mm	105 to 220mm	2.8kg
9565	Thin Jaw Two Leg Puller	60 to 200mm	150mm	120 to 270mm	3.2kg
9566	Thin Jaw Two Leg Puller	80 to 250mm	200mm	160 to 330mm	6.7kg
9567	Thin Jaw Two Leg Puller	80 to 350mm	200mm	160 to 420mm	8.0kg
9568	Thin Jaw Two Leg Puller	110 to 520mm	200mm	195 to 600mm	12.0kg
9569	Thin Jaw Two Leg Puller	170 to 640mm	225mm	260 to 715mm	23.0kg
