Belt Gates

Description:
Pioneered by Gates, these narrow cross-sections can transmit up to 3 times the power of the classical cross-sections (A, B, C and D) in the same amount of drive space.
Gates Super HC also manages speed ranges that a classical V-belt cannot handle. Suitable for all industrial applications, particularly where space, weight and power capacity are critical.
Designed for heavy industry and the harsh demands of the mining market, Super HC is Gates most popular V Belt construction.

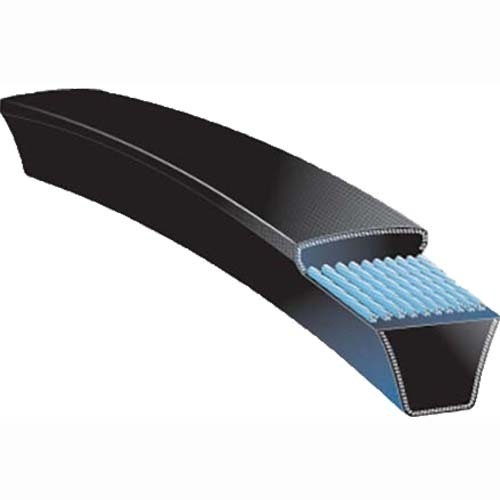

Construction:
Narrow cross-section.
Fibre-loaded compound for improved belt stability.
Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life.
Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing.
Flex-Weave cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat.
Non-self-igniting - the belt will not catch fire from heat build-up, even with severe slippage.
Static conductive - ISO 1813 and RMA IP3-3.
Advantages:
Up to 3 times more power in the same space or same power in 1/3 to 1/2 less space than classical belts.
Cost and space savings.
Longer belt life.
Suitable for dirty/dusty environments.
Match free system: all sizes meet Gates V80 tolerances, can be installed without matching.
Back idlers can be used.
Tolerates mild clutching or drive slip.
Temperature Range
-35 degC to +80 degC
Specs:
Brand: Gates
Model Number: 9339-01600
V-Belt Code: SPB1600
Length (mm): 1600
Top Width (mm): 17
Depth (mm): 13
Type: Super HC - ISO V-Belt - Narrow Section
System of Measurement: Metric
Material: Flex-Bonded Polyester Cord
Section: SPB
Application: Heavy-Duty Belt
Series: Gates Super HC V-Belt
