Descriptions:

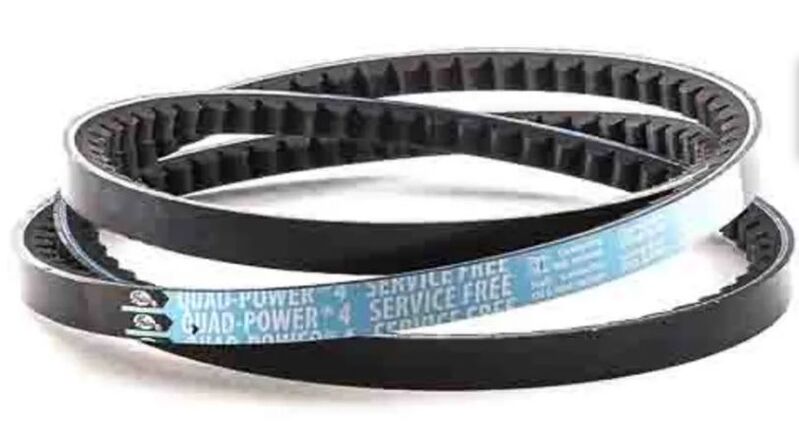

Quad-Power 4 has been developed to replace traditional V-belts on applications where space, weight savings and temperature resistance are required.
Extensive testing has shown that Gates Quad-Power 4 V-belts power up to 50 percent higher power ratings than the wrapped Super HC.
The new upgraded EPDM compound allows the belt to handle extreme temperatures up to +130 degC.
Construction:
Notch depth is in proportion to the cross-section to ensure perfect stability
Precision-ground sidewalls reduce centre distance variations, vibration and uniform wedging action
Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
Fibre-loaded EPDM compound withstands high heat, ozone, sunlight and provides better cord support
Enhanced blue adhesion layer increases tensile cord bond
Double Flex-Weave textile backing protects the belt against wear – especially when back idlers are used
Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
Static conductive - ISO 1813 and RMA IP3-3
Advantages:
No re-tensioning required
Reduce wrapped belt drive width up to 50 percent
Increase efficiency up to 3 percent over wrapped belts
Use smaller diameter pulleys than wrapped belts
Moulded notches reduce and evenly distributed thermal and bending stresses
Reduce drive maintenance
Match free system: all sizes meet Gates UNISET and V80 tolerances, can be installed without matching
Back idlers can be used
Temperature Range:
Range: -50 degC to +130 degC
Length: 1212mm
Top Width: 10mm
Height: 8mm
Belt Section: XPZ/3VX
Series: Quad Power 4

(XPZ1212)

SKU XPZ1212
Barcode # 9310754825400
Brand Gates
Shipping Weight 1.0000kg
Shipping Width 0.150m
Shipping Height 0.050m
Shipping Length 0.350m
