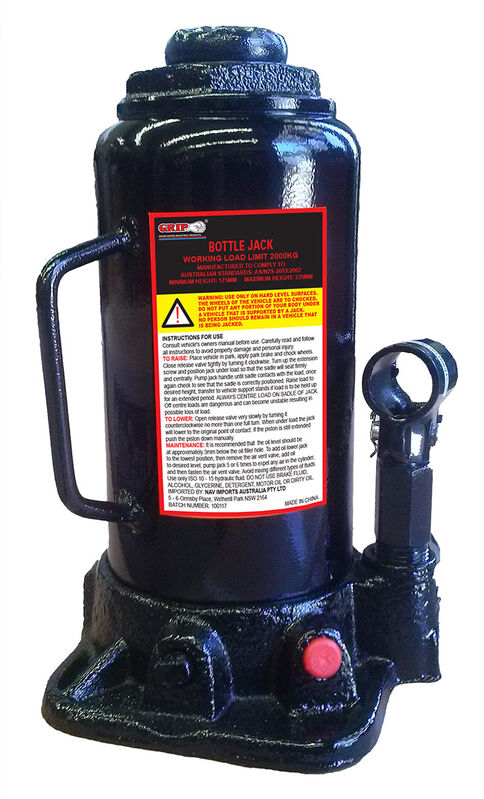

4T Hydraulic Bottle Jack

APPLICATION
Bottle style hydraulic jack for the lifting of vehicles or other heavy components and/or equipment so that maintenance can be performed
FEATURES
Heavy duty steel construction, fully seam welded base and top cap for superior leak resistance
Fully machined steel (not cast iron) heavy duty base plate
Quality chrome hydraulic ram and piston pump
Black baked enamel finish for corrosion resistance
Australian Standard compliance SAFETY NOTICE
The jack should be used on hard, level surfaces
The wheels of the vehicle to be chocked
Do NOT put a portion of your body under a vehicle supported by a jack
No person should remain in a vehicle that is being jacked
Do NOT exceed working load limit
SPECIFICATIONS:
SPECIFICATIONS
Working load limit: 4000kg
Minimum height: 212mm
Maximum height: 407mm
Hydraulic lift height : 118mm
Screw height adjustment: 70mm
Base plate dimensions: 120(L) x 110(W) x 170(H)mm
Australian Standard: AS/NZS 2693 : 2007
