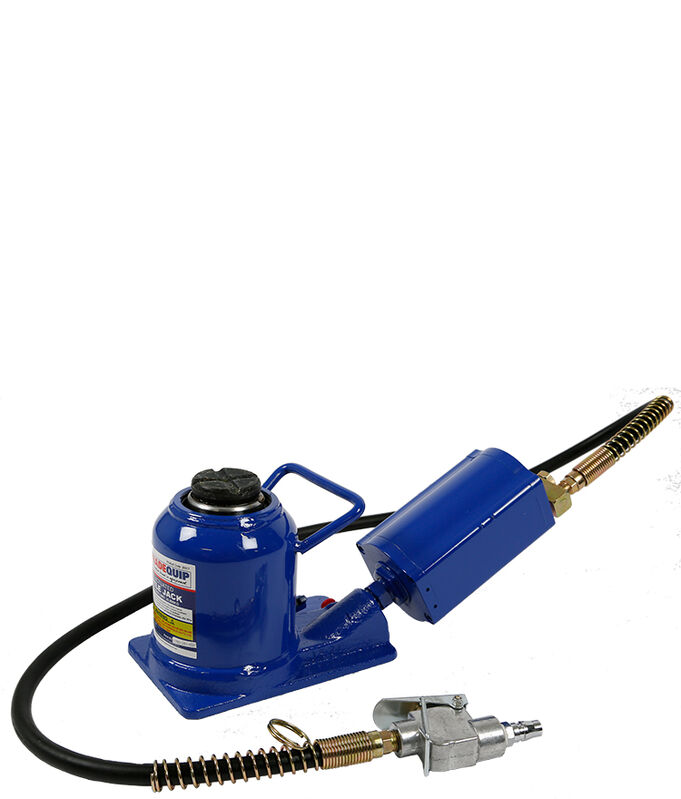

Bottle Jack Air 20000Kg Squat Air/Hydraulic

This TradeQuip "Made for the Trade" Air/ Hydraulic "Low Profile" Bottle Jack is designed to operate pneumatically. This unit provides enough lifting power for use with farm vehicles, heavy duty machinery, industrial construction equipment and more. It’s low profile design get’s you out of tight situations with ease. This 20,000kg heavy-duty air/hydraulic bottle jack with powerful heavy duty operation is the perfect choice for a wide variety of uses. The power of air makes it easy to lift farm vehicles, trucks, lawn mowers, heavy equipment and other large loads! Use this workhorse with a 100-145 PSI rated air pressure supply to lighten the load and provide the fast, strong lifting power you need. The 150–260mm lift range raises the load to the desired height and a knurled, heat-treated pad with screw height adjustment allows you to fine-tune the jack from there. Carelessness can cause injuries, but this jacks added safety overload protection gives you extra peace of mind. It's fitted with a safety overload valve for extra protection. Even if you load the jack up with too much weight, the safety overload kicks in and gently lowers the unit before the operator is put in a dangerous situation. This Bottle Jack is designed for day in and day out durability. A rugged high-grade steel frame is teamed with a lead-free paint finish that covers the entire surface to ensure long-lasting wear and help prevent rust. The paint is oil-, grease- and dirt-resistant for easy cleanup no matter how often you put this jack to work.
Features:
All air bottle jacks have chrome plated rams
Built-in by-pass device protects hydraulic system from over pumping damage
Versatile "quick connector" design provides for easy removal of air hose from air motor allowing compact storage or remote operation
Compact yet powerful Air Turbo Motor
Specifications:
Safe Working Capacity: 20,000kg
Minimum Height: 148mm
Maximum Height: 259mm
Hydraulic Stroke: 66mm
Screw Extension Height: 45mm
Operating Air Pressure: 100-145psi
Base Area: 201x135mm
Carton: 355x165x165mm
Gross Weight: 10kg
