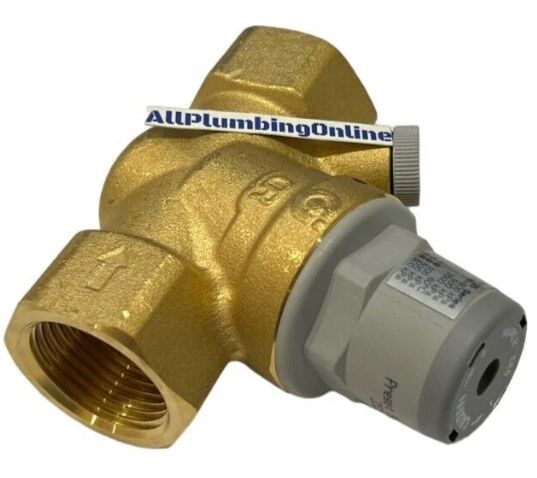

Caleffi 533565H High Performance 1" 25Mm Pressure Reducing Valve 100-600Kpa, Made In Italy
SKU:533565H
RRP $386.10
$245.74
SAVE $140.36 (36%)
Not Available In Store
Calculate Shipping
Technical Details:
Manufacturer: CALEFFI, Made in Italy
Australia Watermark Approved
Model: 533565H
Specifications:
Flow Rate: 50L/min@100kPa; 140L/min@500kPa; 145L/min@600kPa
Maximum Working Temperature: 80°C
Maximum Upstream (Inlet) Pressure: 2000kPa
Downstream (Outlet) Setting Pressure Range: 100 kPa - 600 kPa
Factory Pressure Setting: 500kPa
Optional pressure gauge can be inserted for downstream pressure measurement via the BSP 6mm test plug
Extractable and serviceable cartridge with stainless steel filter mesh
Thread Size: 3/4" BSP (20mm) Female Thread (20FI x 20FI)
Physical Thread Measurement: 26.441mm internal diameter, refer to the BSP vs Physical Thread Measurement Table in the photo gallery
Material: DR Brass Body
Intended Use: Hot water heaters and special applications in high temperature or pressure situations
Manufacturer: CALEFFI, Made in Italy
Australia Watermark Approved
Model: 533565H
Specifications:
Flow Rate: 50L/min@100kPa; 140L/min@500kPa; 145L/min@600kPa
Maximum Working Temperature: 80°C
Maximum Upstream (Inlet) Pressure: 2000kPa
Downstream (Outlet) Setting Pressure Range: 100 kPa - 600 kPa
Factory Pressure Setting: 500kPa
Optional pressure gauge can be inserted for downstream pressure measurement via the BSP 6mm test plug
Extractable and serviceable cartridge with stainless steel filter mesh
Thread Size: 3/4" BSP (20mm) Female Thread (20FI x 20FI)
Physical Thread Measurement: 26.441mm internal diameter, refer to the BSP vs Physical Thread Measurement Table in the photo gallery
Material: DR Brass Body
Intended Use: Hot water heaters and special applications in high temperature or pressure situations
(533565H)
| SKU | 533565H |
| Barcode # | 9310754994915 |
| Brand | Caleffi |
| Shipping Weight | 0.5000kg |
| Shipping Width | 150.000m |
| Shipping Height | 100.000m |
| Shipping Length | 150.000m |
