DESCRIPTION and SPECIFICATION:
Description:
Pin less closed reinforced rocking dog clutch mechanism
TPR handle and side handle - being able to rotate in 4 positions
Regulator integrated in forward/reverse knob with 3 positions power setting in both directions
Rubber bumper protecting both applications & tool (included)
Handle being able to rotate in 4 positions for ultimate operator comfort
Angled down exhaust blows air away from work place
Specifications:
Square drive: 1"
Actual air consumption: 15.6 l/s (Metric) / 33 cfm (Imperial)
Air inlet thread size: 1/2"
Average air consumption: 3.9 l/s (Metric) / 8.2 cfm (Imperial)
Bolt size: M32 mm
Free speed: 5000 rpm
Maximum Torque (reverse): 2400 Nm (Metric) / 1770 ft.lbs (Imperial)
Working Torque Range (fwd): 955 - 2073 Nm (Metric) / 704 - 1530 ft.lbs (Imperial)
Socket retainer: Dual (hole+friction)
Clutch type: Pin less closed rocking dog
Handle type: Pistol

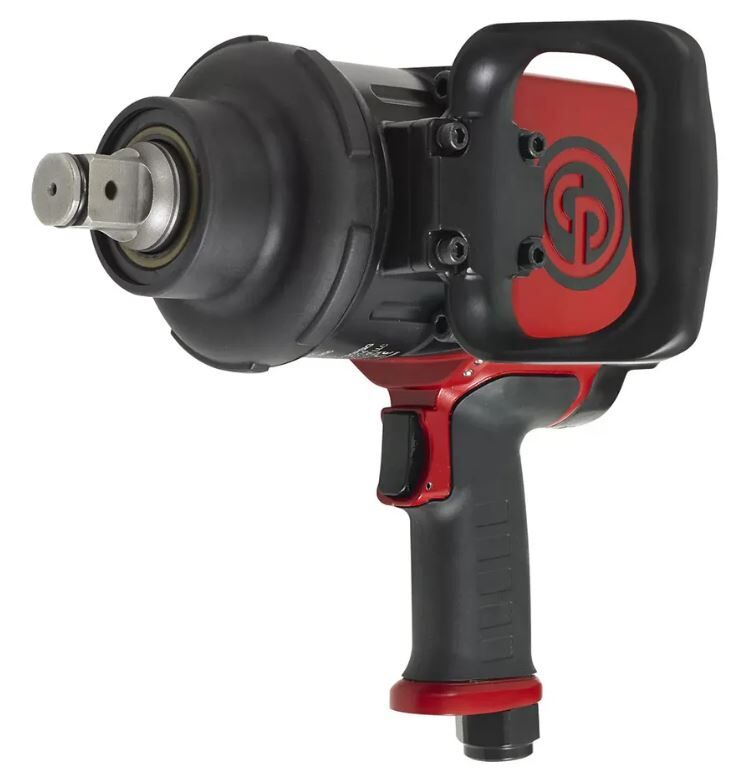

(CP7776)

SKU CP7776
Barcode # 9310135713633
Brand Chicago Pneumatic
Shipping Weight 8.0000kg
Shipping Width 0.250m
Shipping Height 0.200m
Shipping Length 0.500m
