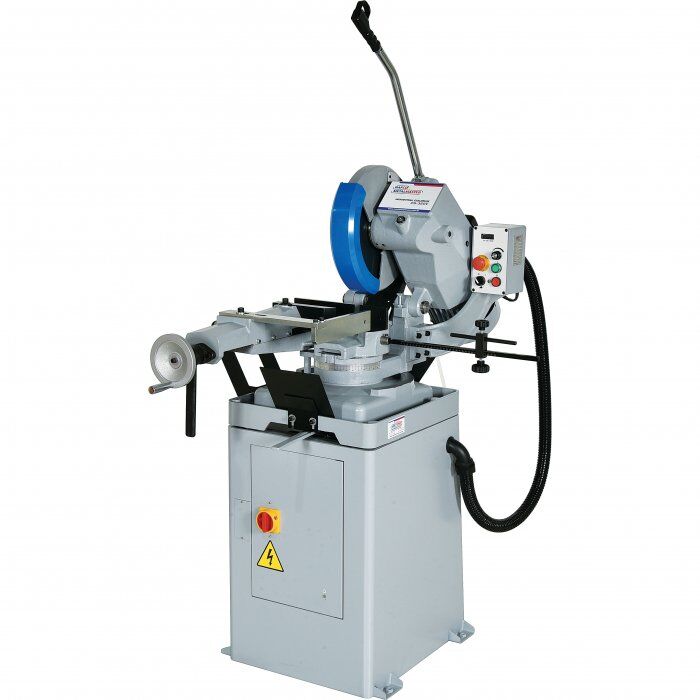

CS-350V - Cold Saw, Includes Stand

Features:
Electronic variable speed 24-120rpm
2.2kW / 3hp 240V heavy duty motor
Rugged cast iron construction offers years of accurate cutting
Lock at any angle between -45° or +45 deg mitre in both directions via locking lever
Degree markings engraved onto swivelling base for quick and accurate mitre cutting
Dual material clamp system providing burr free cuts on both pieces of material
Quick action vice clamp lever designed to increase production
Built in blade coolant pump system with flow control valve
Oil sight glass located on right side of the gearbox so operator can maintain correct lubrication levels according to specifications provided
Dead man trigger switch located on cutting handle provides operator safety on/off power control
Automatic retract safety blade guard covers blade when returned to home position
Spring assisted head return provides a even balance during cutting operation and reduces operator fatigue
HSS cutting blade is included for general types of material and thickness
Specs:
ORDER CODE: S829
MODEL: CS-350V
Cutting Head Action: Manual
Operation Type: Swivel - Dual Mitre
(mm)Round Capacity at 90 / 45deg.. : 120 / 100
(mm)Square Capacity at 90 / 45 deg..: 105 / 85
(mm)Rectangle Capacity at 90 / 45deg (WxH): 160 x 90 / 90 x 70
(mm)Blade Size - Diametre. x Bore (dia): 350 x 32
Vice Clamping Fixture: Manual
Coolant System: Yes
(mm)Table Working Height (with Stand): 1000
(rpm)Blade SpeedVariable: 24-120
(kW / hp)Motor Power: 2.2 / 3
(V / amp)Voltage / Amperage: 240 / 20
(kg)Nett Weight: 280
