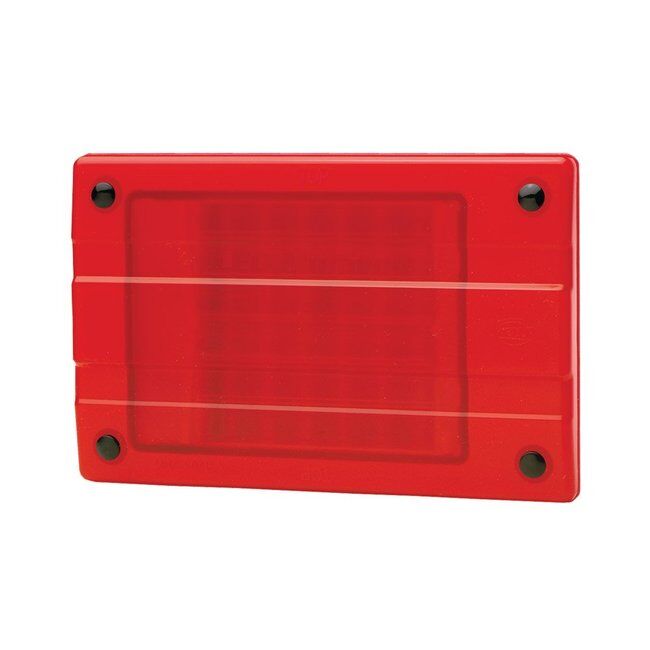

Designline 24 LED Module Stop/Rear Position Lamp Horizontal Mount

2332-H24: Designline 24 LED Stop/ Rear Position Module - Horizontal Mount
Description: LED Multivolt Module designed to upgrade existing surface mount Designline lamps featuring EDT (Enhanced Definition Technology) for the stop signal function and UWVO (Ultra Wide Visibility Optics) for significantly improved side visibility. Equipped with 24 high-performance LEDs.
Voltage: Multivolt (9-33VDC)
Wattage:
Stop - 6W
Rear Position - 2W
Mounting: Designed to be mounted horizontally.
Protection: Reverse Polarity and 1.5kW Transient Voltage Suppressor (TVS).
Cable Length: 20 centimetres
ADR No:
49/00
49/00
ADR Function:
Stop Lamp
Rear Position Lamp
CRN:
34509
34502
Accessories & Spare Parts:
9.2041.09BULK: Single housing
(pack of 10)
9.2422.09BULK: Double housing (pack of 10)
9.2423.09: Triple housing
Dimension: 195 x 124.5 x 33.5mm
