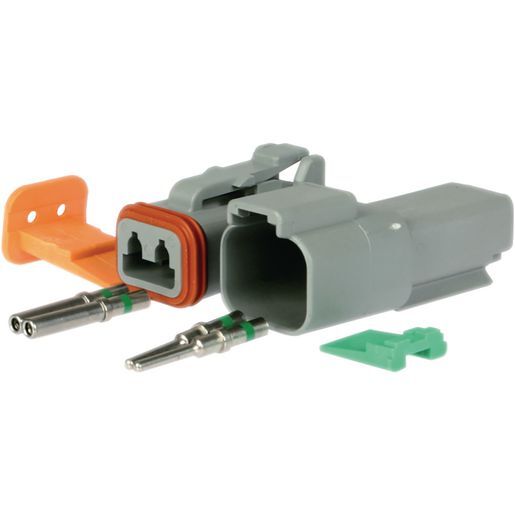

Deutsch Dt #16 - 2 Way 1 Kit

Kit contains:
1 x DT04-2P Receptacle
1 x DT06-2S Plug
1 x W2S Pin Lock
1 x W2P Socket Lock
2 x 0460-215-16141 Pin
2 x 0462-209-16141 Socket
Product description:
Deutsch DT Series connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, lower cost, and design flexibility. The DT Series offers the designer the ability to use multiple size 16 contacts, each with 13 amp continuous capacity, within a single shell.
Deutsch DT series connectors will stand up to the harsh environmental challenges that are common to industrial markets that require advanced performance. Proper parts, procedures, and tooling must be used.
Temperature:
Operating at temperatures from -55 degC to +125 degC continuous at rated current.
Durability:
No electrical or mechanical defects after 100 cycles of engagement and disengagement.
Vibration:
No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G’s at 10 to 2000 Hz in each of the three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
Physical Shock:
No unlocking, unmating, or other unsatisfactory result during or after 50 G’s in each of three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond. MIL-STD 202, Method 213, Condition “C”.
Fluid Resistance:
Connectors show no damage when exposed to most fluids used in industrial applications.
Insulation Resistance:
1000 megohms minimum at 25 degC.
Moisture Resistance:
Properly wired and mated connections will withstand immersion under three feet of water
without loss of electronic qualities or leakage.
Dielectric Withstanding Voltage:
Current leakage less than 2 milliamps at 1500 VAC.
Thermal Cycle:
No cracking, chipping or leaking after 20 test cycles from -55 degC to +125 degC.
