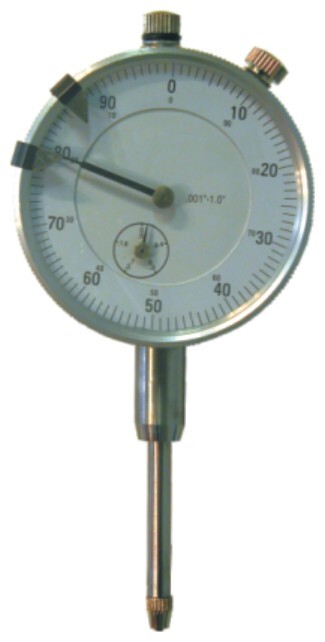

0-25Mm Metric Dial Indicator Gauge 0.01Mm Graduations

APPLICATION:
Used in precision engineering machine shops and engine building processes for accurate measurements of deck clearances, straightness of shafts, run out or other measurements that involve distances between two surfaces or small amounts of component travel. Can be easily mounted on a magnetic base accessory (GRIP Part No 59120) for a more ergonomic operation with greater accuracy.
FEATURES:
Hardened stainless steel precision manufacture with knurled nut lock adjustment
58mm diameter, 360 degree rotatable, bezel with adjustable indicator lugs
Easy to read precision dial with black micro fine graduations on a white background and internal rotation counter gauge
8mm stem diameter for strength
Extended length plunger with hardened and precision ground contact point
Right angled mounting bracket for efficient fitment to magnetic base
SPECIFICATIONS:
Bezel diameter: 58mm
Measurement range: 0 - 25mm
Increments of measurement: 0.01mm
Packaged dimensions: 155(L)x82(W)x56(H)mm
Weight(net): 300g
