No.4455 - Flow Meter Common Rail Injector Set

This flow meter measures rapidly and effectively the amount of fuel that each and every injector returns to the deposit tank. This in turn diagnoses the injector status and if any damage is present. Full instructions with drawings and diagrams are included. Supplied in blow mold case for transportation purposes.

1. Direct measurement of return flow of the injector.
2. Measurement of return flow using external flow meter.
3. Simultaneous measurement of up to six injectors.

Test Diagnosis: Check the measuring chambers. As soon as the diesel fuel volume is available for a diagnosis (when the chamber is half full), switch off the engine. Make a diagnosis of the test result. The chambers should contain a balanced amount of diesel fuel.

When one chamber presents a different amount of diesel fuel then it may be necessary to repair or replace the faulty injectors.

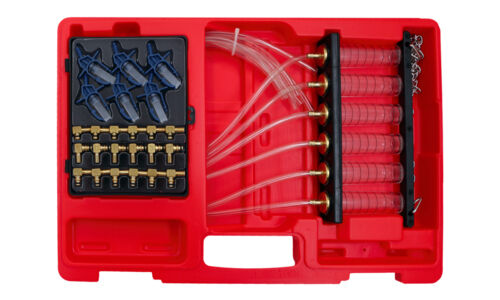

Contains:

• Measuring unit with six chambers and 800mm long rubber hoses.
• One set (6 units) C1 adaptors for Bosch injectors.
• One set (6 units) C2 adaptors for Siemens injectors.
• One set (6 units) C3 adaptors for Denso injectors.
• One set (6 units) C4 plastic adaptors for Dephi injectors.
