Diesel Pre-Heat Starter Switch 5 Positions 26.5Mm Diameter Opening
SKU:4005
RRP $312.84
$210.87
SAVE $101.97 (33%)
Not Available In Store
Calculate Shipping

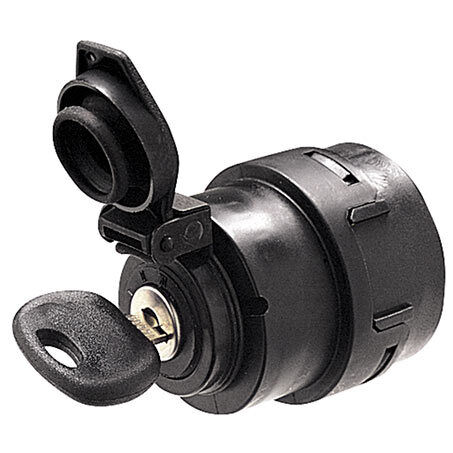

Hella Diesel Ignition Switch 12/24 Volt 50amp.
5 Position - Side lamp/Off/Driving position/Glow/Glow Start- 2 keys- spring return to Ign.
Maximum Load all at 12 Volt: 35amp at Ignition Run - Glow- 50amp at Start- Side lamp at 8amp.
Key is only removable in the Off position.
Silver Contacts- Corrosion resistant Plastic housing.
10 Blade terminals.
Mounting Stem: 11.00mm long with a 3/4"-24 thread and 26.80mm diameter.-Suits panel thickness 0.76mm to 3.50mm.-2 year Warranty.----4005-Hella
Specifications:
Voltage: 12 - 24 VOLT
Amps: 50
Function: SIDE LAMP / OFF / IGN / PRE HEAT / START
Number of Terminals: 6
Number of Postions: 5
5 Position - Side lamp/Off/Driving position/Glow/Glow Start- 2 keys- spring return to Ign.
Maximum Load all at 12 Volt: 35amp at Ignition Run - Glow- 50amp at Start- Side lamp at 8amp.
Key is only removable in the Off position.
Silver Contacts- Corrosion resistant Plastic housing.
10 Blade terminals.
Mounting Stem: 11.00mm long with a 3/4"-24 thread and 26.80mm diameter.-Suits panel thickness 0.76mm to 3.50mm.-2 year Warranty.----4005-Hella
Specifications:
Voltage: 12 - 24 VOLT
Amps: 50
Function: SIDE LAMP / OFF / IGN / PRE HEAT / START
Number of Terminals: 6
Number of Postions: 5
(4005)
| SKU | 4005 |
| Barcode # | 9310754716364 |
| Brand | HELLA |
| Shipping Weight | 0.2000kg |
| Shipping Width | 50.000m |
| Shipping Height | 50.000m |
| Shipping Length | 60.000m |
