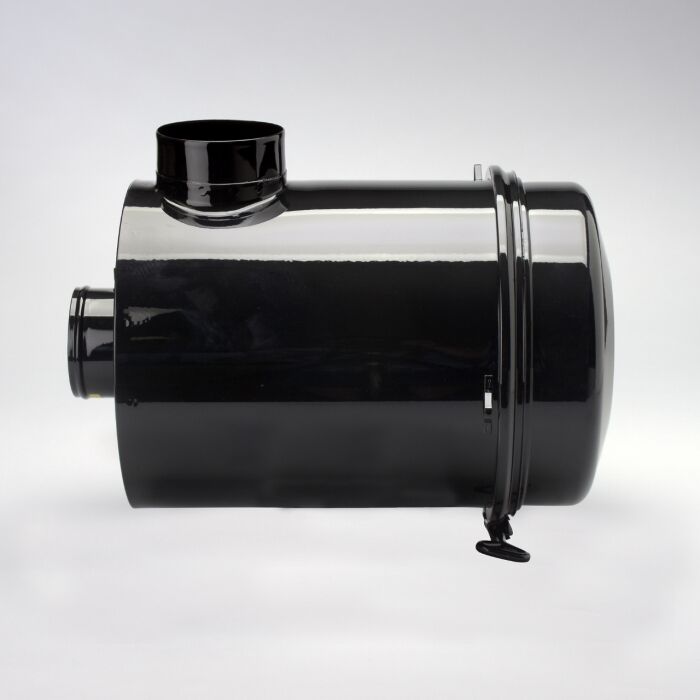

Air Filter Housing

Attributes:
Inlet Diameter: 114.3 mm (4.50 inch)
Outlet Diameter: 101.6 mm (4.00 inch)
Body Diameter Maximum: 299.97 mm (11.81 inch)
Body Length: 326.14 mm (12.84 inch)
Overall Length: 484.89 mm (19.09 inch)
Rated Flow LR: 10.4 m3/min (367 cfm)
Rated Flow MR: 12.3 m3/min (434 cfm)
Rated Flow HR: 13.8 m3/min (487 cfm)
Restriction LR: 152 mm H2O (5.98 inch H2O)
Restriction MR: 203 mm H2O (7.99 inch H2O)
Restriction HR: 254 mm H2O (10.00 inch H2O)
Family: FWG
Brand: Cyclopac
