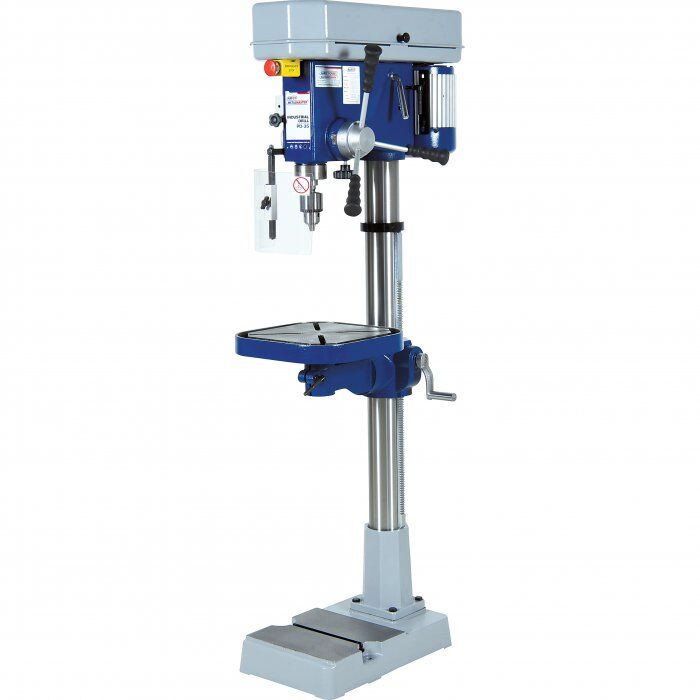

Drill Pedestal PD35 240V

Overview
If you are in the market for a superior quality industrial belt drive drilling machine with a capacity of dia 31.5mm, and need it to take some serious work load duration then this machine would definitely perform to the task. This PD-35 pedestal drill manufactured in Taiwan to precision engineering tolerance and excellence will certainly transform your drilling holes experience to the next level of expertise.
What makes this machine different from the others is that the casting have been made heavier abnd thicker walled, which in this case relates to a total weight of 143kg on this model, that is approximately 30 percent heavier to its rival in this range.
The PD-35 drill has been designed to include large B section drive belts to ensure a much superior drive is achieved and less belt slippage when using larger drill bits.
Therefore, this range of drilling machines offers all the basic feature necessities to outperform and outlast the competitor machines all day everyday.
Features:
Ideal for industrial workshop use
Quiet B section V-belt drive system
Quick action belt tensioning lever
Adjustable safety drilling chuck guard with micro switch
Safety micro switch on pulley guard
Safety magnetic-type switch
Emergency stop switch
Rack and pinion table height adjustment with locking lever
Thick walled column ensuring greater rigidity
Table rotates 360 degree
Drilling depth stop setting with scale
T slotted work table
9 Spindle speeds - 180, 300, 320, 310, 430, 480, 620, 1050, 1200, 1680rpm
240V Fan-cooled motor rated for continuous use with overload protection
Made in Taiwan
Includes
Drill chuck and arbor
Chuck key to suit
Drill drift
Specifications:
ORDER CODE: D162
MODEL: PD-35
Type - Bench / Pedestal: Pedestal
Duty Type: Industrial-Duty
(mm)Drilling Diameter Capacity : dia 31.5
(MT)Spindle Taper: 3
(mm)Spindle Travel: 125
(mm)Throat Depth: 225
(mm)Quill Diameter: 72
(mm)Collar Diameter: 92
(mm)Column Diameter: 92
(mm)Spindle To Table: 730
(mm)Spindle To Base: 1175
Table Shape: Square
(mm)Table Size: 350 x 350
Micro Switch On Pulley Guard: Yes
Drive Belt Type: B Section
(No.)Spindle Speed Steps: 9
(rpm)Spindle Speed Range: 180 - 1680
(kW / hp)Motor Powe: r0.75 / 1
(V / amp)Voltage / Amperage: 240 / 10
(mm)Overall Height: 1700
(cm)Shipping Dimensions (L x W x H): 137 x 60 x 72
(kg)Nett Weight: 143
