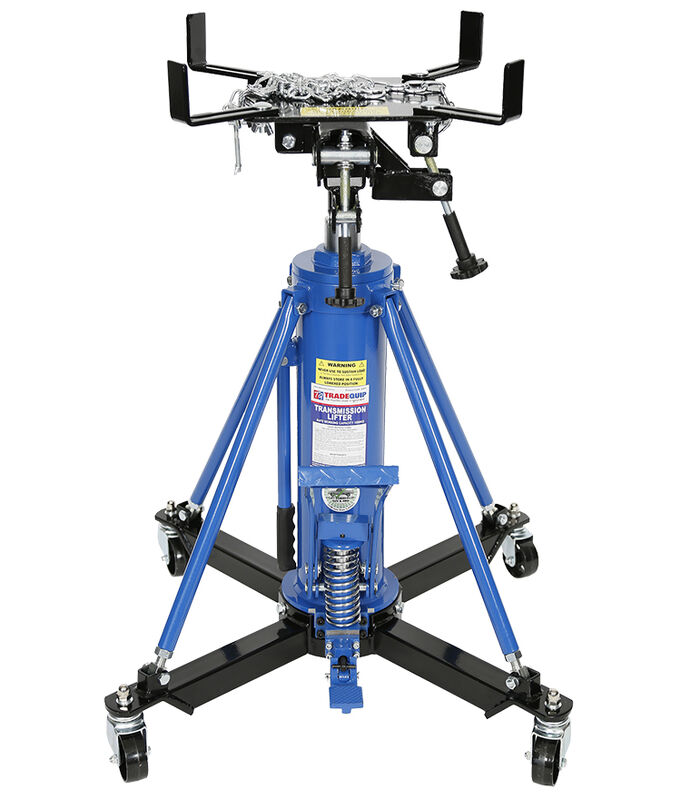

Dual Stage Transmission Jack 1,000kg
SKU:2063T
This TradeQuip "Made for the Trade" 1,000kg Transmission Lifter is designed for passenger car, 4WD & Light commercial transmission installation and removal. It features a universal mounting cradle that provides a 4 way tilt range and a manually operated hydraulic system with smooth hydraulic lift and descent. The hydraulic system also includes a bypass system to prevent over extension and accidental overloading. The sturdy and stable design offers safety and security when removing and installing large and heavy transmissions.
Features:
Designed for Passenger Car, 4WD & Light Commercial Transmissions
Base frame constructed of high-grade steel
2-Stage hydraulic lift
High quality large diameter hydraulic cylinder
Universal 4 way tilt cradle with safety chains
Lead-free paint finish for a long-lasting finish
Paint finish is oil, grease and dirt-resistant for easy cleanup
Heavy-duty steel swivel castors
Specifications:
Safe Working Capacity: RWD/FWD
/AWD/4X4 GVM <3,200KG
Rated Capacity: 1000kg
Working Height: 940-1920mm
Lifting Platform Size: 280 x 280mm
Lifting Platform Bracket Ranges ID: 250 x 250mm to 410 x 410mm
Forward Tilt: 15?
Rearward Tilt: 10?
Side Tilt: 9?
Side Tilt: 11?
Gross Weight: 82.5kg
Features:
Designed for Passenger Car, 4WD & Light Commercial Transmissions
Base frame constructed of high-grade steel
2-Stage hydraulic lift
High quality large diameter hydraulic cylinder
Universal 4 way tilt cradle with safety chains
Lead-free paint finish for a long-lasting finish
Paint finish is oil, grease and dirt-resistant for easy cleanup
Heavy-duty steel swivel castors
Specifications:
Safe Working Capacity: RWD/FWD
/AWD/4X4 GVM <3,200KG
Rated Capacity: 1000kg
Working Height: 940-1920mm
Lifting Platform Size: 280 x 280mm
Lifting Platform Bracket Ranges ID: 250 x 250mm to 410 x 410mm
Forward Tilt: 15?
Rearward Tilt: 10?
Side Tilt: 9?
Side Tilt: 11?
Gross Weight: 82.5kg
(2063T)
SKU | 2063T |
Barcode # | 9.31075E+12 |
Brand | Tradequip |
Shipping Weight | 83.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.500m |
Shipping Length | 1.000m |
