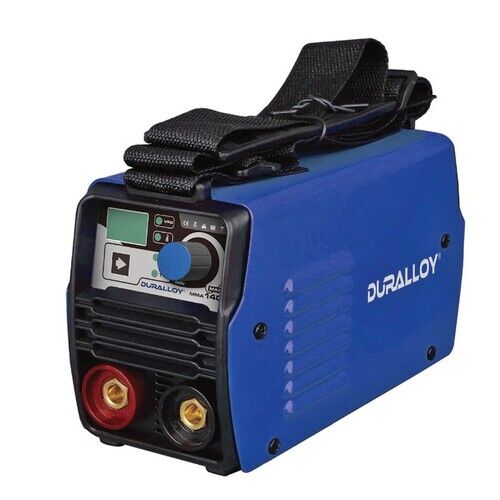

Durralloy 140 Amp Mini Inverter

All DURALLOY Welding Machines feature PFC Technology for maximum electrical efficiency and consistent weld output.
PORTABLE: The machine weighs just 2kg ensuring ease of portability.
DIGITAL DISPLAY: Variable amperage control with digital meter.
PROTECTIONS: Equipped with temperature, voltage and current sensors for greater protection.
FEATURES:
Highly portable
10 Amp primary plug
IP21S rating
Arc Force, Hot Start, Anti Stick and VRD all built-in
MMA and LIFT TIG functions
Exceptional smooth Arc characteristics
APPLICATIONS:
Farm and rural maintenance
Portable on-site repair and maintenance
Stainless steel fabrication
MATERIALS:
Mild steel
Stainless steel
Cast Iron
Dissimilar metals
SPECIFICTIONS:
Power Supply: 1-240kW ± 10 percent
Supply Plug: 10 Amps
Frequency: 50/60Hz
Input Current: 30/10 Amps
Duty Cycle
40oC 10min
140A at 10 percent
58A at 60 percent
45A at 100 percent
No Load Voltage: 64V
Welding Current: 10 - 140A
Efficiency: ? 85 percent
Net Weight: 2kg
Dimensions: 225mm x 95mm x 130mm
Insulation Class:H
Protection Class: IP21S
Cooling: Fan
Electrode Diameter: dia 1.6 - dia 3.2
Electrode Type: 6013, 7018, etc
Power Factor: 0.76
PACKAGE INCLUDES:
Power Source
MMA Earth Lead and Clamp
MMA Arc Lead and Holder
Owner’s Manual
