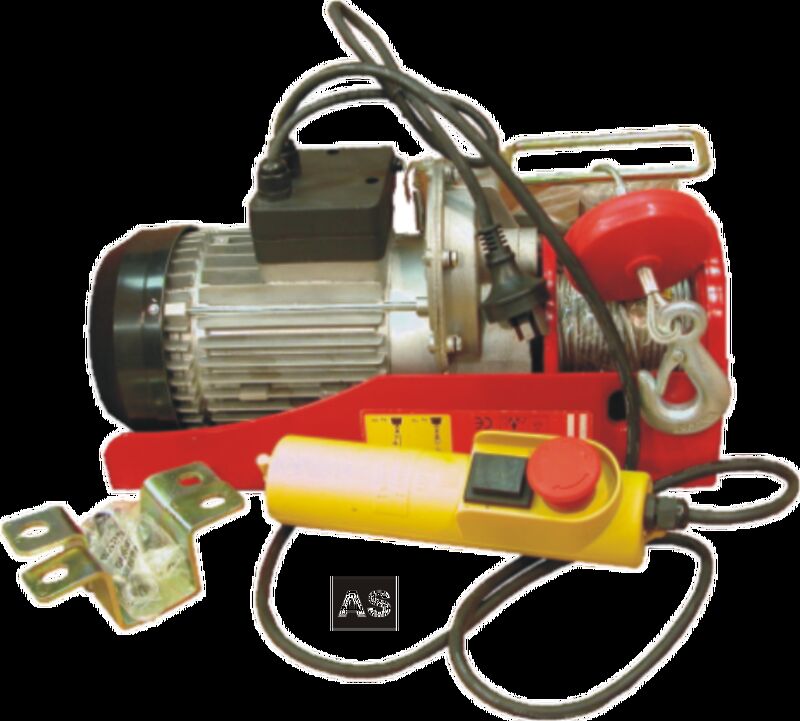

Grip 400Kg Electric Lifting Hoist
SKU:18122
APPLICATION:
To safely facilitate the lifting of heavy objects and /or components. No more backbreaking lifts or dropped loads, this lift hoist is ideal for warehouse, garage or other commercial applications. Bolt the unit directly to an overhead beam to make short work of any lifting job.
FEATURES:
Input power comprises of a copper wound, single phase electric motor 750watt/240v-50Hz
Supplied with a tackle pulley fitted with a rated hook to allow single and double cable rope lifting. This doubles the unit's lifting capacity
Safety cable assisted, hand held raising and lowering controls with overload function and emergency stop NVR safety switch
Unique load balance safety cut out switch
Beam mounting brackets and bolts included
SPECIFICATIONS:
Lifting capacity 400 / 200kg
Lifting height 6 - 12 meters
Lifting speed 4 / 8 m per minute
Wire lifting cable diameter 3.8mm
Duty cycle 25% - 10 minutes
Protection grade IP54
Current 3.3A
Weight (nett) 15.5kg
To safely facilitate the lifting of heavy objects and /or components. No more backbreaking lifts or dropped loads, this lift hoist is ideal for warehouse, garage or other commercial applications. Bolt the unit directly to an overhead beam to make short work of any lifting job.
FEATURES:
Input power comprises of a copper wound, single phase electric motor 750watt/240v-50Hz
Supplied with a tackle pulley fitted with a rated hook to allow single and double cable rope lifting. This doubles the unit's lifting capacity
Safety cable assisted, hand held raising and lowering controls with overload function and emergency stop NVR safety switch
Unique load balance safety cut out switch
Beam mounting brackets and bolts included
SPECIFICATIONS:
Lifting capacity 400 / 200kg
Lifting height 6 - 12 meters
Lifting speed 4 / 8 m per minute
Wire lifting cable diameter 3.8mm
Duty cycle 25% - 10 minutes
Protection grade IP54
Current 3.3A
Weight (nett) 15.5kg
(18122)
SKU | 18122 |
Barcode # | 9.31014E+12 |
Brand | GRIP |
Shipping Weight | 16.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.400m |
