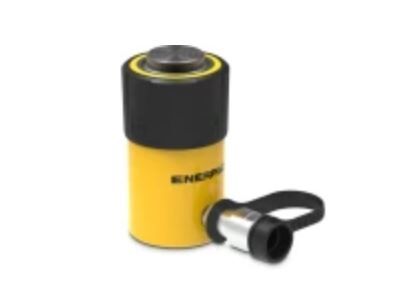

Enerpac 50mm 232kn 50 mm Stroke General Purpose Hydraulic Cylinder

Model : RC252
Series : RC
Product Lines : Industrial Tools
RC-TRIO Series Cylinders
The next evolution of the legendary Enerpac RC-Series hydraulic cylinder. The driving force of the Enerpac cylinder range, the RC-TRIO is as versatile as ever. Featuring a Trio Bearing System for enhanced durability and a hybrid spring-return system for faster retraction and even greater productivity.
New TRIO Bearing System
Includes up to 4 high-performance wear bands that offer increased resistance to damage, reducing bearing load and increasing cylinder lifespan.
Hardened composite material wear bands increase bearing surface area for greater sideload resistance - Significantly improving cylinder life.
New high-performance Polyethylene seals last longer than ever, improving lifespan and keep you working for longer.
New TRIO Stop Ring
Part of the Trio Bearing System, the Trio Stop Ring includes an additional wear band or high-strength bronze to absorb greater side load
Capable of taking full cylinder extension force
Features durable wiper to help prevent contamination from entering the cylinder during retract cycles.
New TRIO Spring System
High-strength steel wire improves spring life
Spring retention design improves serviceability while allowing higher pre-load during assembly
Spring is easily removed without special tools.
Durable Piston Rod
High-strength steel plunger for improved life and sideload resistance
Nickel-plated plunger coating improves corrosion protection
Internal plunger threads for easy tool fixturing.
Enhanced Ergonomics
Standard carry handles on cylinders from 15 up to 25 kg. Sizes above 25 kg include certified lifting eyes or optional handles.
Collar threads, plunger threads and base mounting holes enable easy fixturing.
Improved Saddle Retention
Hardened plunger saddle protects plunger end during all lifting operations
Easily removable for access to plunger mounting threads
Tilt and smooth saddles available as accessories (compatible with new range of CATS-Series Tilt Saddles).
Enduring Compatibility
For full compatibility and peace of mind, the new RC-Series model numbers, external dimensions and threads remain unchanged from prior RC-Series cylinders. Ensuring compatibility with historical versions and systems.
Specs:
Maximum Operating Pressure (bar): 700
Capacity Class (tonnage): 25
Maximum Cylinder Capacity Advance (kN): 232
Stroke (mm): 50
Collapsed Height A (mm): 165
Extended Height B (mm): 215
Return Type: Single-Acting, Spring Return
Plunger Type: Solid
Material: Steel
Cylinder Effective Area Advance (cm2): 33,3
Oil Capacity Advance (cm3): 166
Surface Treatment: Paint
Coupler: CR400 Coupler
Weight (kg): 6,4
