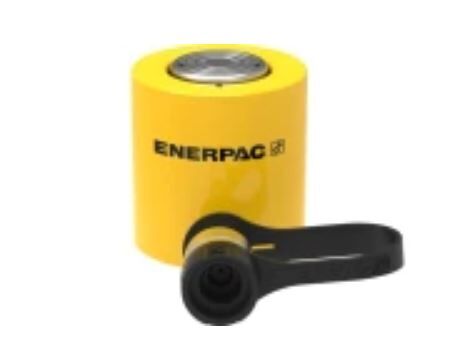

Enerpac Low Profile 45mm 201kn Hydraulic Cylinder

Model : RCS201
Series : RCS
Product Lines : Industrial Tools
Lightweight, low profile design for use in confined spaces
Baked enamel finish for increased corrosion resistance
Plunger wiper reduces contamination, extending cylinder life
CR400 coupler and dust cap included on all models
Grooved plunger end with threaded holes for mounting tilt saddles
Plated steel plungers
Single-acting spring return
Specs:
Maximum Operating Pressure (bar): 700
Capacity Class (tonnage): 20
Maximum Cylinder Capacity Advance (kN): 201
Stroke (mm):45
Collapsed Height A (mm): 98
Extended Height B (mm): 143
Return Type: Single-Acting, Spring Return
Plunger Type: Solid
Material: Steel
Cylinder Effective Area Advance (cm2): 28,7
Oil Capacity Advance (cm3): 129
Surface Treatment: Paint
Coupler: CR400 Coupler
Weight (kg): 5,0
