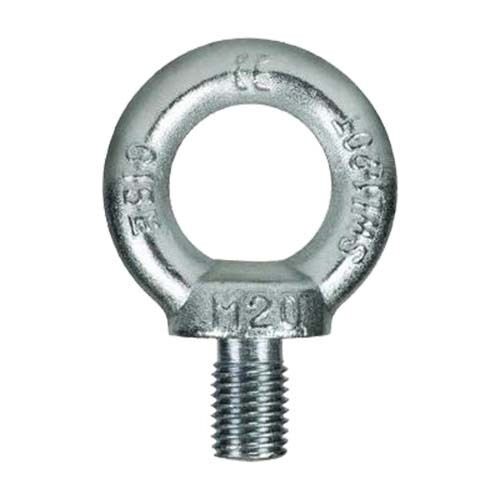

Eye Bolt 20mm Din580 1.2T
SKU:601020
Summary:
Eye bolts DIN580 are generally used as a removable lifting point where a rated female thread or nut can be utilised also can be used as a termination for chain, wire rope and other assembles where required.
Made from C15 carbon steel with zinc plated finish, manufactured with a standard larger eye. Only available in metric thread sizes.
Conforms to DIN580 and DIN582 marked with working load limit in tonne, nominal size in millimetre, quality grade, batch numbered and supplier identification.
Proof tested to 2 x working load limit and minimum breaking force of 6 x working load limit.
Test certificates are available upon request.
Specifications:
Size (mm): M20
Pitch (mm): 2.50
WLL (T): 1.20
Wt. (kg):0.45
Eye bolts DIN580 are generally used as a removable lifting point where a rated female thread or nut can be utilised also can be used as a termination for chain, wire rope and other assembles where required.
Made from C15 carbon steel with zinc plated finish, manufactured with a standard larger eye. Only available in metric thread sizes.
Conforms to DIN580 and DIN582 marked with working load limit in tonne, nominal size in millimetre, quality grade, batch numbered and supplier identification.
Proof tested to 2 x working load limit and minimum breaking force of 6 x working load limit.
Test certificates are available upon request.
Specifications:
Size (mm): M20
Pitch (mm): 2.50
WLL (T): 1.20
Wt. (kg):0.45
(601020)
| SKU | 601020 |
| Barcode # | 9.34534E+12 |
| Brand | Auslift |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.100m |
| Shipping Length | 0.150m |
