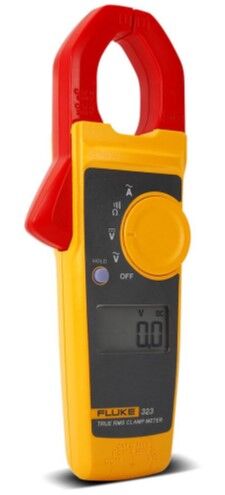

Fluke 323 Clamp Meter 400A
SKU:323
Fluke Clamp Meters are designed to perform in the toughest environments and provide noise-free, reliable results users can trust to confidently diagnose problems. True-rms measurements and optimised ergonomics make the 320 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians.
Model Comparison:
Fluke 324 324 RMS Clamp Meter - Clamp Meter measures temperature and capacitance
Fluke FLUKE-325 400A AC/DC True RMS Clamp Meter - Clamp Meter measures DC current and frequency
Features:
Slim ergonomic design
CAT IV 300 V/CAT III 600 V safety rating
Hold button
Rugged, reliable basic True-RMS clamp meter for measuring current up to 400 A
Measures AC current to 400 A
Measures AC voltage and DC voltage to 600 V
Provides True RMS AC voltage and current for accurate measurements on non-linear signals
Measures resistance to 4 kΩ with continuity detection
Specifications:
AC Current:
Range: 400.0A
Accuracy: 2 percent ± 5 digits (45 Hz to 65 Hz), 2.5 % ± 5 digits (65 Hz to 400 Hz)
AC voltage:
Range: 600.0 V
Accuracy: 1.5 percent ± 5 digits
DC voltage:
Range: 600.0 V
Accuracy: 1.0 percent ± 5 digits
Resistance:
Range: 400.0 ohm/4000 ohm
Accuracy: 1 percent ± 5 digits
Continuity: ≤ 70 ohm
AC response: True-rms
Data hold: Yes
Max wire diameter: 30 mm (600 MCM)
Dimensions (L x W x H): 207mm x 75mm x 34mm
Weight 0.265kg
Warranty:
2 Years Warranty Covered By Fluke
Model Comparison:
Fluke 324 324 RMS Clamp Meter - Clamp Meter measures temperature and capacitance
Fluke FLUKE-325 400A AC/DC True RMS Clamp Meter - Clamp Meter measures DC current and frequency
Features:
Slim ergonomic design
CAT IV 300 V/CAT III 600 V safety rating
Hold button
Rugged, reliable basic True-RMS clamp meter for measuring current up to 400 A
Measures AC current to 400 A
Measures AC voltage and DC voltage to 600 V
Provides True RMS AC voltage and current for accurate measurements on non-linear signals
Measures resistance to 4 kΩ with continuity detection
Specifications:
AC Current:
Range: 400.0A
Accuracy: 2 percent ± 5 digits (45 Hz to 65 Hz), 2.5 % ± 5 digits (65 Hz to 400 Hz)
AC voltage:
Range: 600.0 V
Accuracy: 1.5 percent ± 5 digits
DC voltage:
Range: 600.0 V
Accuracy: 1.0 percent ± 5 digits
Resistance:
Range: 400.0 ohm/4000 ohm
Accuracy: 1 percent ± 5 digits
Continuity: ≤ 70 ohm
AC response: True-rms
Data hold: Yes
Max wire diameter: 30 mm (600 MCM)
Dimensions (L x W x H): 207mm x 75mm x 34mm
Weight 0.265kg
Warranty:
2 Years Warranty Covered By Fluke
(323)
SKU | 323 |
Barcode # | 9.31075E+12 |
Brand | Fluke |
Shipping Weight | 0.3000kg |
Shipping Width | 0.100m |
Shipping Height | 0.050m |
Shipping Length | 0.220m |
