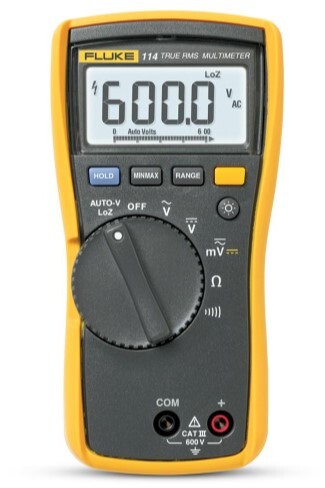

Fluke FLUKE-114/APAC (5293798) Electrical Multimeter
SKU:W184171
Features:
Ideal Digital Multimeter for “go/no-go” testing
Features AutoVolt automatic AC/DC voltage selection
Includes low input impedance to help prevent false readings due to ghost voltage
Presents a large white LED backlight for working in poorly lit areas
Measures resistance, continuity, frequency, and capacitance
Provides Min/Max/Average with elapsed time to record signal fluctuations
Features a compact ergonomic design for one-handed operation
Comes with an holster with probe holders for easy storage
Features manual and automatic ranging
Safety rates CAT III 600 V
Fits into optional Tool Pack magnetic hanger for hands-free operation
Specifications:
Max Voltage: 600V
Surge protection: 6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2
DisplayDigital: 6,000 counts, updates 4 per second
Bar graph: 33 segments, updates 32 per second
Operating temperature: -10°C to + 50°C
Storage temperature: -40°C to + 60°C
Battery type: 9 volt Alkaline, NEDA 1604A / IEC 6LR61
Battery life: 400 hours typical, without backlight
DC millivolts:
Range/resolution: 600.0 mV / 0.1 mV
Accuracy: ± ([% of reading] + [counts]): 0.5% + 2
Continuity:
Range/resolution: 600 ohm / 1 ohm
Accuracy: Beeper on < 20 ohm, off > 250 ohm detects opens or shorts of 500 ohms or longer.
Ohms:
Range/resolution: 600.0 ohm / 0.1 Ω, 6.000 kΩ / 0.001 kohm, 60.00 kohm / 0.01 kohm, 600.0 kohm / 0.1 kohm, 6.000 Mohm / 0.001 Mohm
Accuracy: 0.9% + 1
Range/resolution: 40.00 Mohm / 0.01 Mohm
Accuracy: 5% + 2
Dimensions (W x D x H): 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Weight: 0.55kg
Ideal Digital Multimeter for “go/no-go” testing
Features AutoVolt automatic AC/DC voltage selection
Includes low input impedance to help prevent false readings due to ghost voltage
Presents a large white LED backlight for working in poorly lit areas
Measures resistance, continuity, frequency, and capacitance
Provides Min/Max/Average with elapsed time to record signal fluctuations
Features a compact ergonomic design for one-handed operation
Comes with an holster with probe holders for easy storage
Features manual and automatic ranging
Safety rates CAT III 600 V
Fits into optional Tool Pack magnetic hanger for hands-free operation
Specifications:
Max Voltage: 600V
Surge protection: 6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2
DisplayDigital: 6,000 counts, updates 4 per second
Bar graph: 33 segments, updates 32 per second
Operating temperature: -10°C to + 50°C
Storage temperature: -40°C to + 60°C
Battery type: 9 volt Alkaline, NEDA 1604A / IEC 6LR61
Battery life: 400 hours typical, without backlight
DC millivolts:
Range/resolution: 600.0 mV / 0.1 mV
Accuracy: ± ([% of reading] + [counts]): 0.5% + 2
Continuity:
Range/resolution: 600 ohm / 1 ohm
Accuracy: Beeper on < 20 ohm, off > 250 ohm detects opens or shorts of 500 ohms or longer.
Ohms:
Range/resolution: 600.0 ohm / 0.1 Ω, 6.000 kΩ / 0.001 kohm, 60.00 kohm / 0.01 kohm, 600.0 kohm / 0.1 kohm, 6.000 Mohm / 0.001 Mohm
Accuracy: 0.9% + 1
Range/resolution: 40.00 Mohm / 0.01 Mohm
Accuracy: 5% + 2
Dimensions (W x D x H): 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Weight: 0.55kg
(W184171)
SKU | W184171 |
Barcode # | 9310754912377 |
Brand | Fluke |
Shipping Weight | 0.6000kg |
Shipping Width | 0.100m |
Shipping Height | 0.050m |
Shipping Length | 0.200m |
