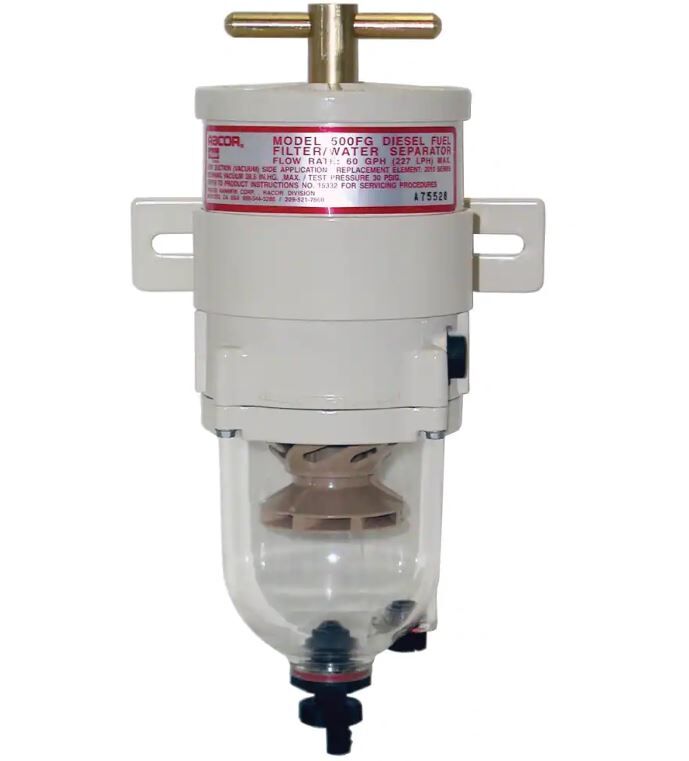

Fuel Water Separator Housing

Technical Specifications:
Flow Rate: 60 gph (227 lph)
Connection Type: 3/4"-16 UNF-2B SAE Female
Micron Rating: 98 percent at 4 Micron
Materials of Construction: Bowl: Clear Engineering Plastic
Product Series: Cartridge FF/WS, Industrial Turbine
Brand:Racor
For Fluid Type: Diesel Fuel / B20
Mounting Type: Bracket Included
Number of Housings: 1
Clean Pressure Drop: 0.02 bar, 0.3 psi
Pump Type: None
Number of Ports: 2
Filter Element Type: Top loaded element cartridge with Aquabloc media.
Compatible Element:2010SM
Application:
Powergen
Agricultural Equipment
Construction Vehicles
Light, Medium and Heavy Duty Trucks
Other Diesel Powered equipment
Water Sensor Option: See Product Support Tab
Materials of Construction: Power Coated Aluminium Alloy
Maximum Continuous Pressure: 35 psi / 1.03 bar
Element Removal Clearance: 4 in / 10.2 cm inch
