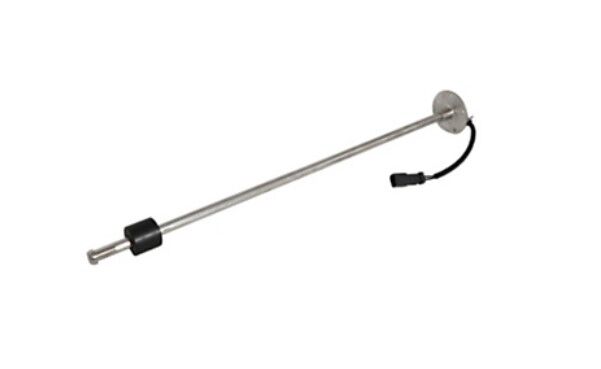

Fuel Level Sender Assembly

Cat Passive fuel sensor with sealed column and Reed switch array
Description:
Cat passive sensors do not require any external electrical power supply. All electric components are sealed from fuel offering high reliability and durability in all conditions. Output signal is variable resistance, based on a float moving in a column with the fuel level. A pull up circuit is typically used, and helps diagnose problems with wires and sensors. A stainless steel tube assembly is used for vibration stability and corrosion resistance.
Attributes:
Reed switches with a float and magnet keeps fuel and moisture from harming sensor components
Designed to operate in difficult conditions (High vibration and contaminated fuel)
Top mounted configuration (5 hole)
Resistance range (30-240 Ohm)
Float range - 555mm
Applications:
Recommended for all applications (fuel, DEF, Oil, grease)
Cat Level Sensors are application or tank specific. Consult your owner’s manual or contact your local Cat Dealer for more information.
