Gates (9802-10102) Multi-Speed (Variable Speed) belt

Descriptions:
Gates Multi-Speed belt provides top performance on variable speed drives
It adjusts itself to the pulley groove without difficulty, providing a wide range of speeds and speed ratios
In addition to the standard Multi-Speed belt line, special sizes (top width, thickness and angle) are available on request
Construction:
Narrow cross-section

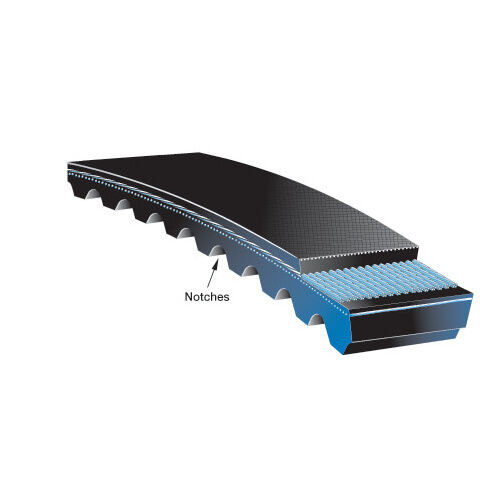

Engineered notch contour increases flexibility. The notches ensure maximum heat dispersion, considerably decreasing running temperatures.
Flex-Bonded tensile cords
Strong transverse rigidity offers high resistance to distortion of the belt in the pulley. This results in even load distribution and wear reduction.
Uniform composition and thickness of the undercord ensure smooth and silent running
Combination of these construction features gives maximum speed adjustment
Advantages:
Maximum range of speed changes
High load-carrying capacity
Smooth machine operation
Exceptionally long belt life
